Floor Console Replacement: M/T

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the gear boots (A).

Fig 1: Removing Gear Boots
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the console upper cover (A).

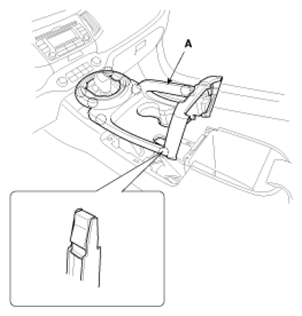

Fig 2: Removing Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the floor console tray (A).

Fig 3: Identifying Floor Console Tray & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

Fig 4: Identifying Console Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the console side cover (A).

Fig 5: Identifying Console Side Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws and bolts, then remove the floor console assembly (A).

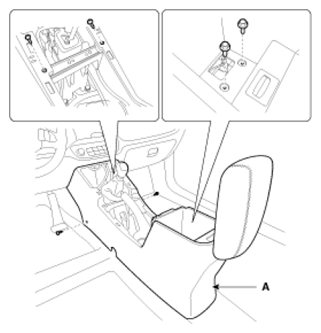

Fig 6: Identifying Floor Console Assembly, Mounting Screws & Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damage clips.
