Fuse: Locations

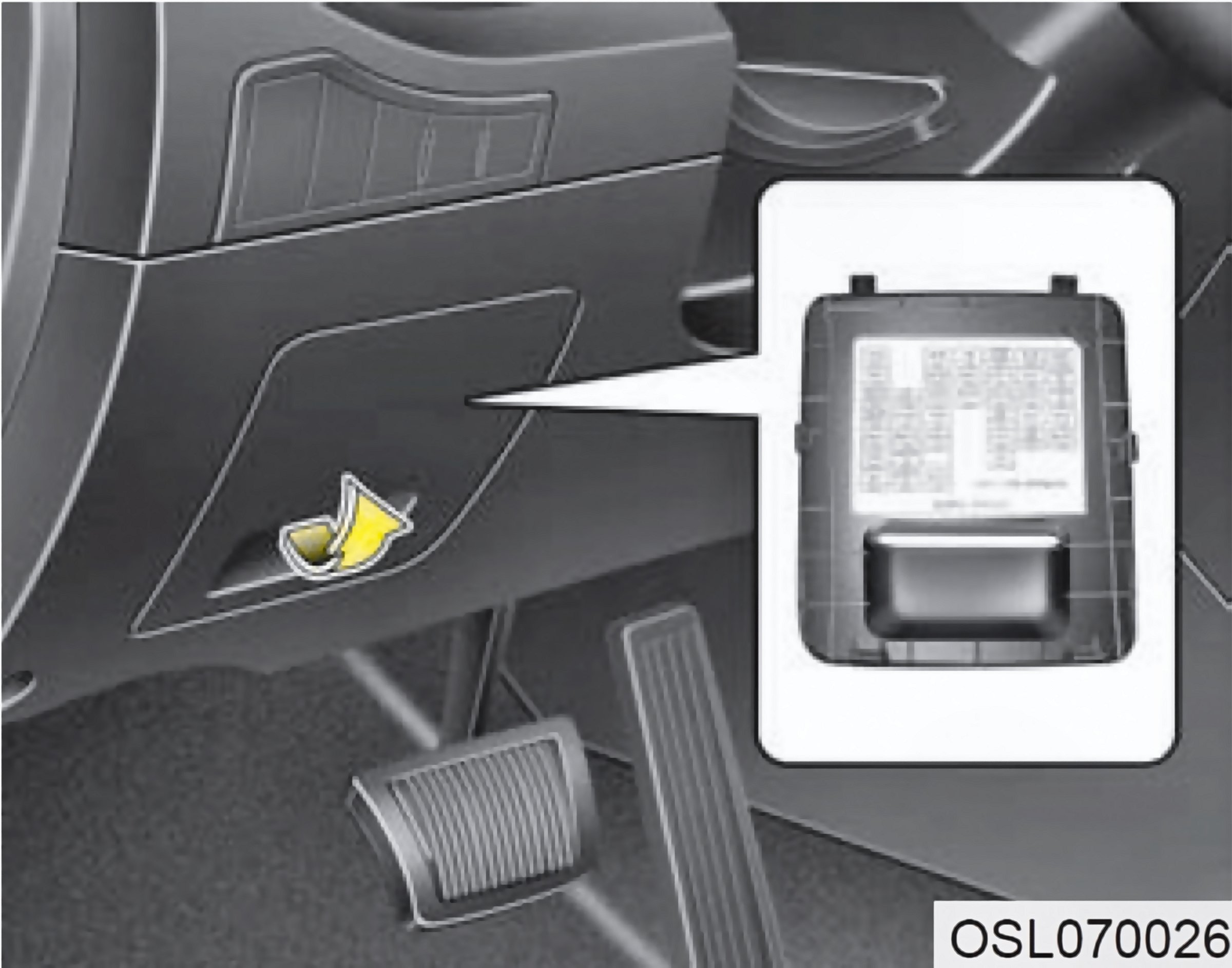

I/P Fuse Panel Location:

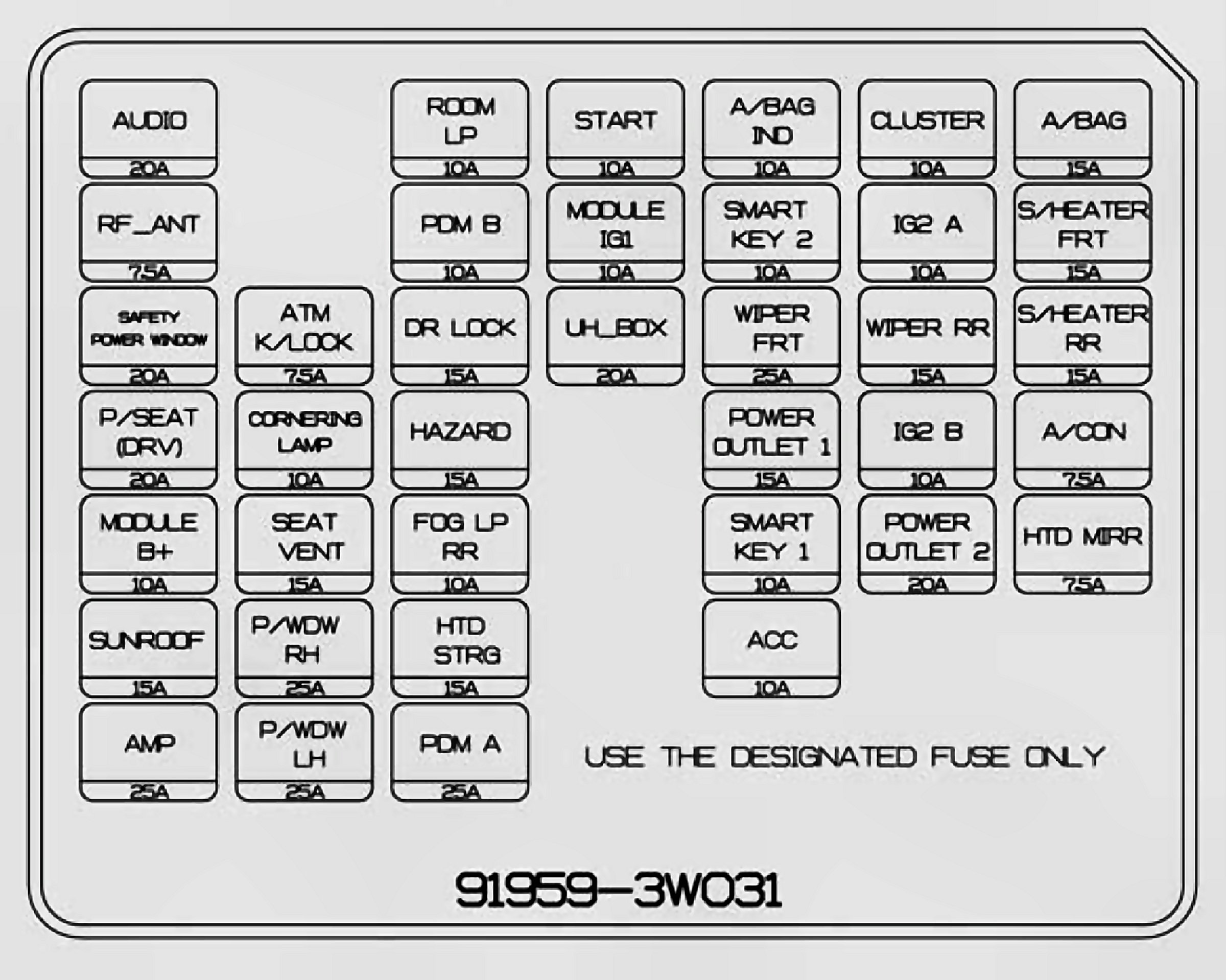

I/P Fuse Locations:

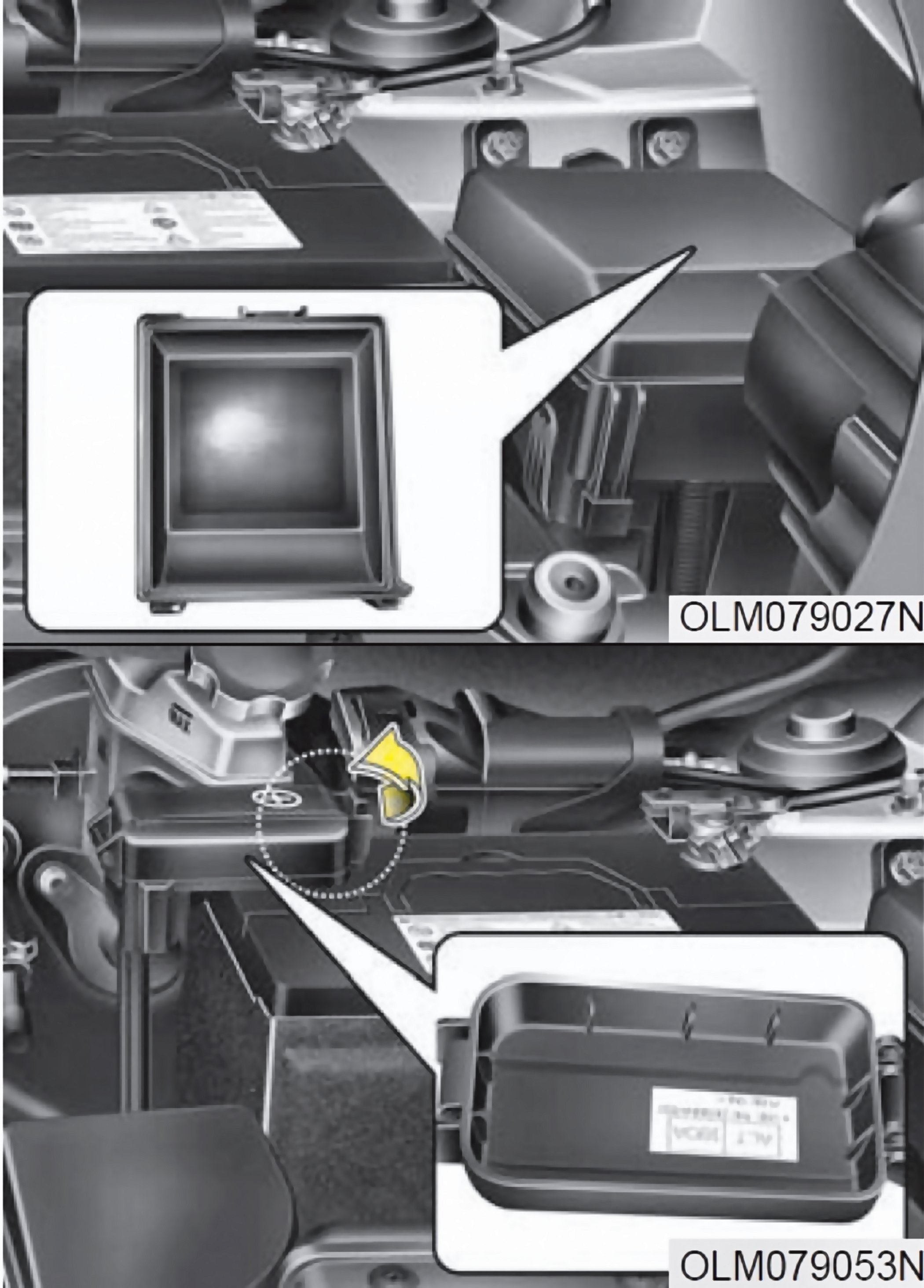

E/R Fuse And Relay Box Location:

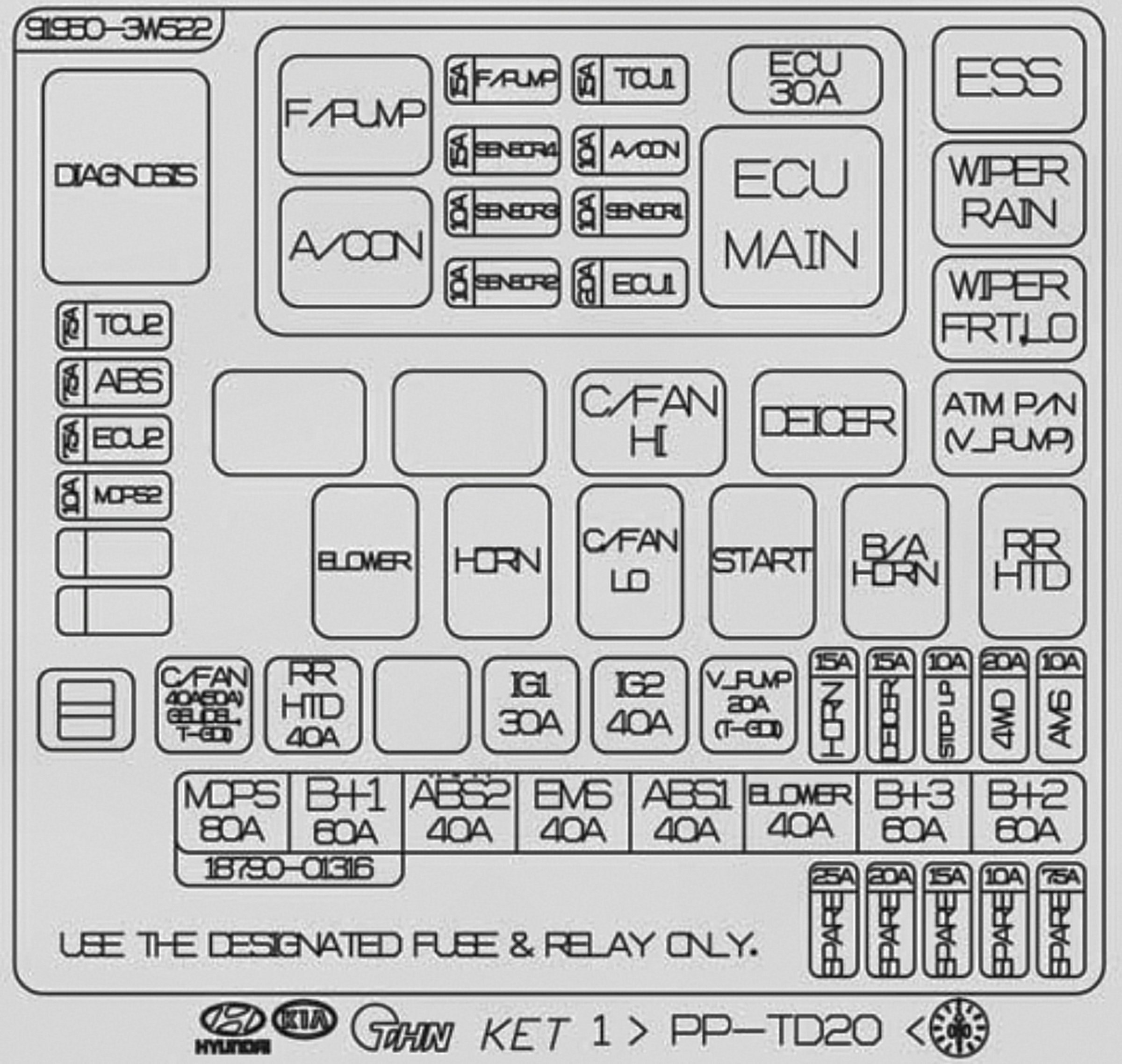

E/R Fuse And Relay Locations:

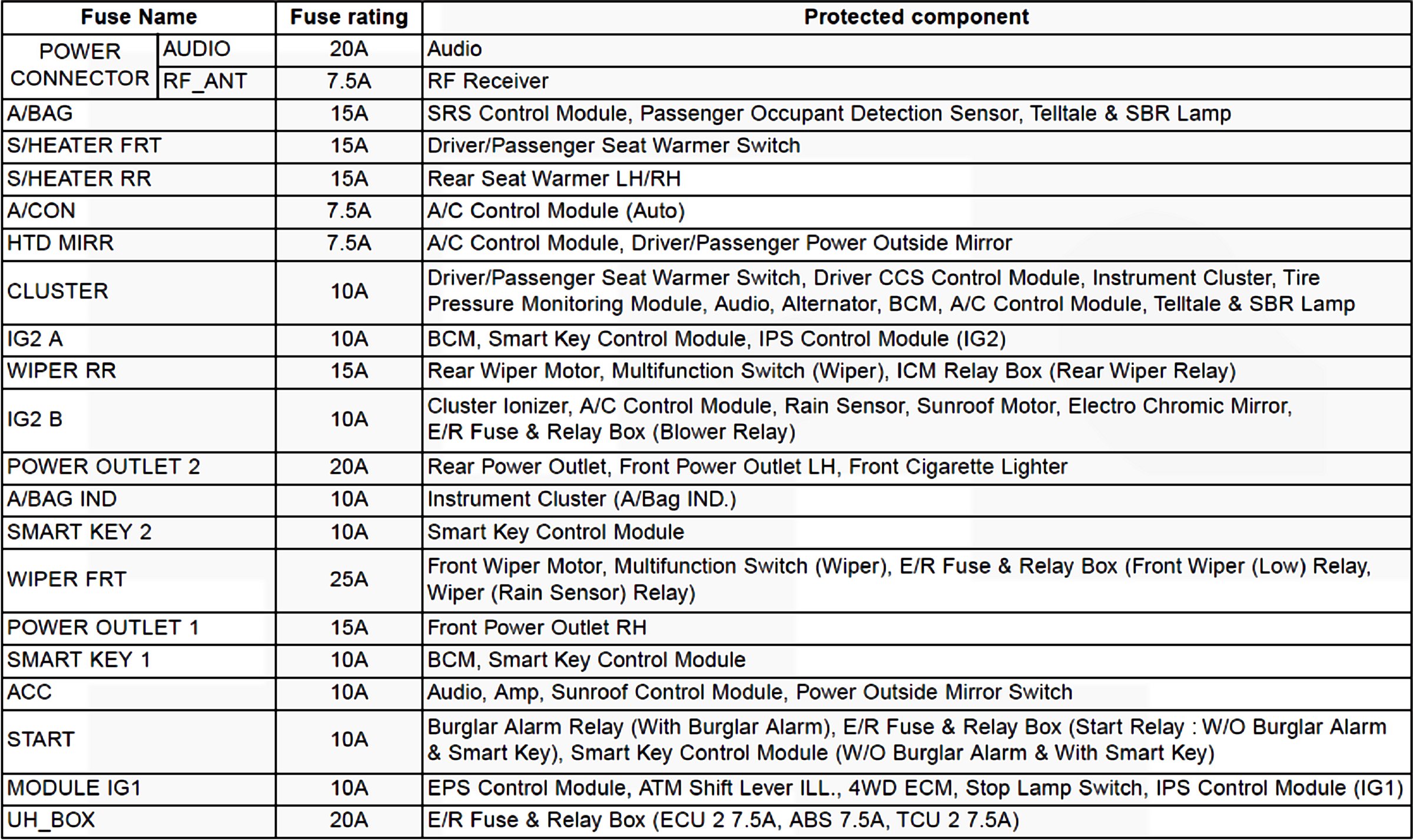

I/P Fuse Descriptions (Part 1):

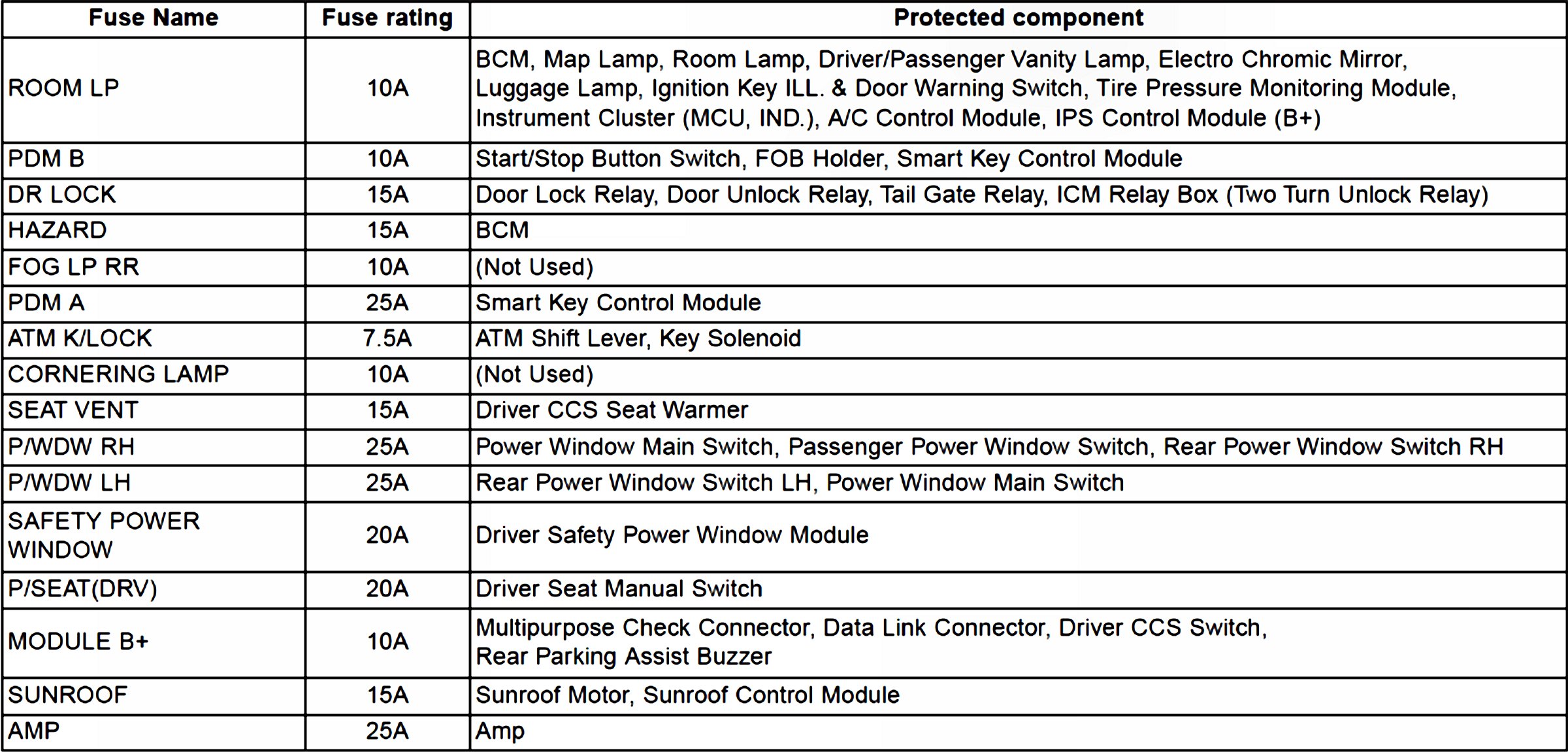

I/P Fuse Descriptions (Part 2):

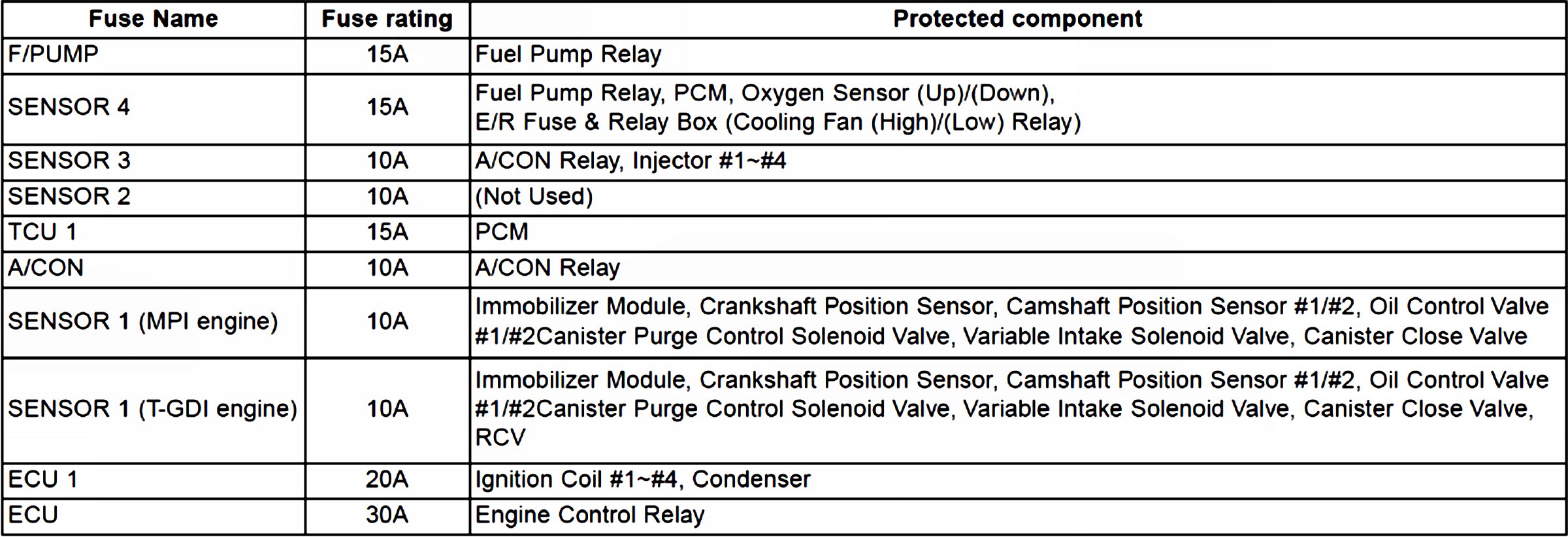

E/R Fuse And Relay Descriptions:

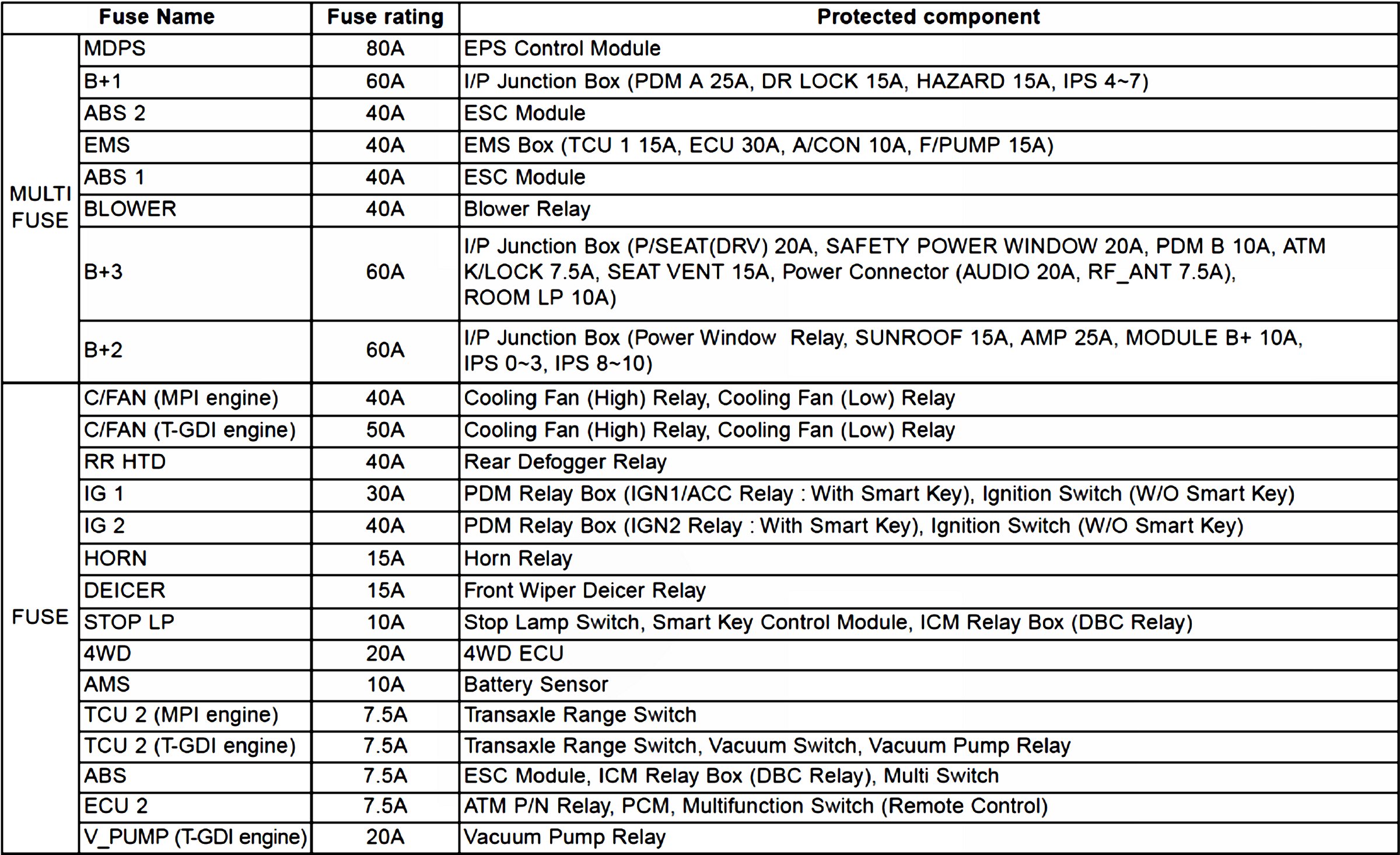

E/R Main Fuse Panel (EMS BOX) Descriptions:
