Repair procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the air-bag module from the steering wheel.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel cover (A) after loosening the screws.

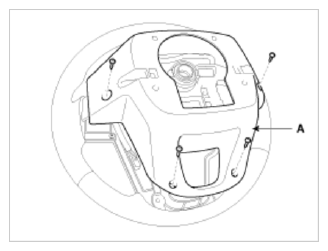

Fig 1: Identifying Steering Wheel Cover And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control switch connector (A).
[LH]

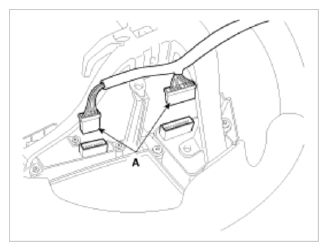

Fig 2: Identifying Steering Wheel Remote Control Switch Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

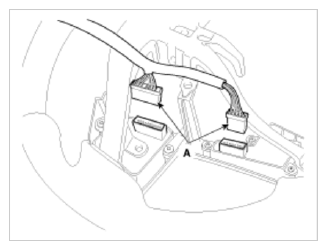

Fig 3: Identifying Steering Wheel Remote Control Switch Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control switch (A) after loosening the mounting screws.

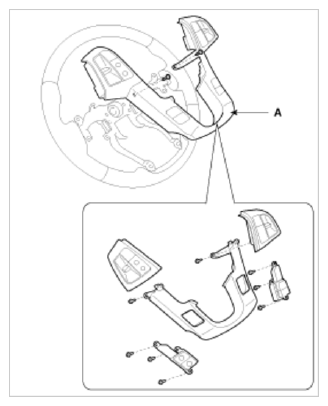

Fig 4: Identifying Steering Wheel Remote Control Switch
Courtesy of KIA MOTORS AMERICA, INC.
