Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the front bumper.

    (Refer to "FRONT BUMPER ")

  3. Disconnect the smart cruise control unit connector (A).

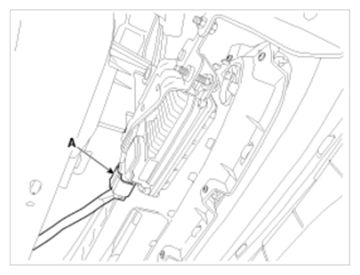

    Fig 1: Disconnecting Smart Cruise Control Unit Connector
    G09751152Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the nuts (A) and bolt (B), and then remove the smart cruise control unit assembly (C) from the vehicle.

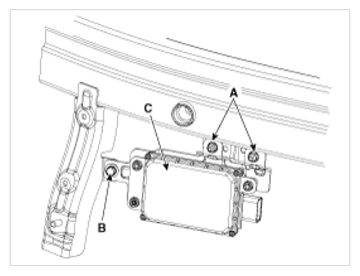

    Fig 2: Identifying Smart Cruise Control Unit Assembly Mounting Bolt And Nut
    G09751153Courtesy of KIA MOTORS AMERICA, INC.
