[Driver Auto Down]

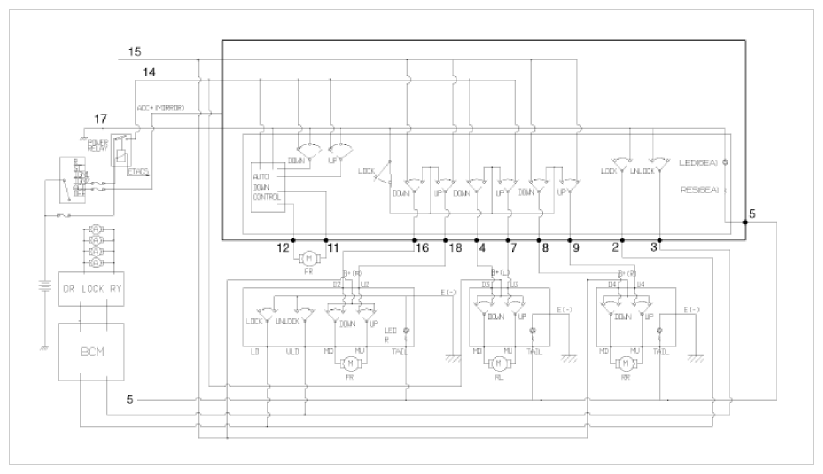

Fig 1: Driver Power Window Switch Circuit Diagram (Driver Auto Down)
G09744403Courtesy of KIA MOTORS AMERICA, INC.
