Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the air duct and air cleaner assembly.
(Refer to "AIR CLEANER ")
Disconnect the starter cable (A) from the B terminal on the solenoid then disconnect the connector from the S terminal (B).

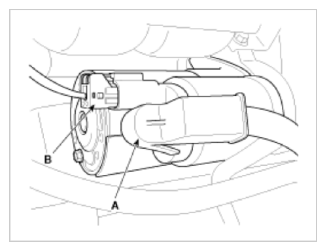

Fig 1: Identifying Starter Cable & S Terminal
Courtesy of KIA MOTORS AMERICA, INC.
Remove the 2 bolts holding the starter, then remove the starter (A).

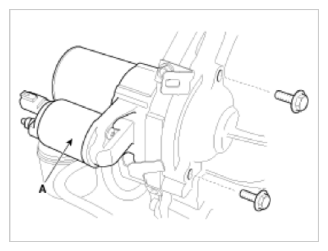

Fig 2: Identifying Starter & Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
