ASP Calibration

Select "Steering Angle Sensor".
Proceed with the test according to the screen introductions.

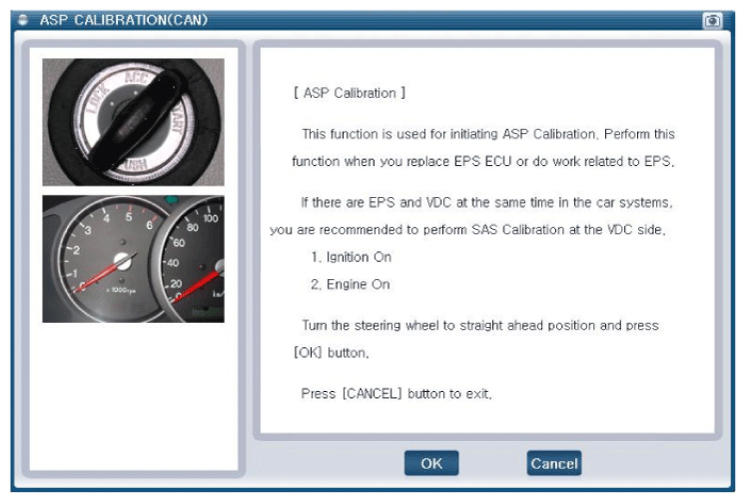

Fig 1: Scantool Display - ASP Calibration
Courtesy of KIA MOTORS AMERICA, INC.

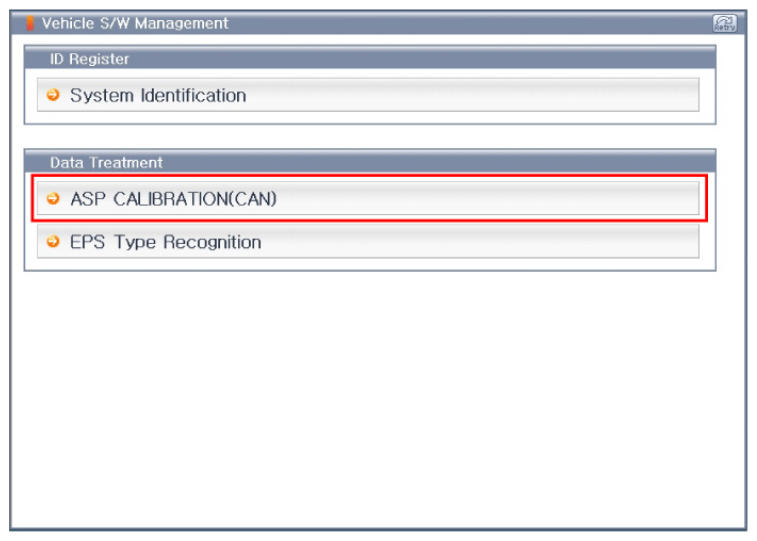

Fig 2: Scantool Display - ASP Calibration Selection Screen
Courtesy of KIA MOTORS AMERICA, INC.
