Charging System - 1.8L: Battery: Troubleshooting

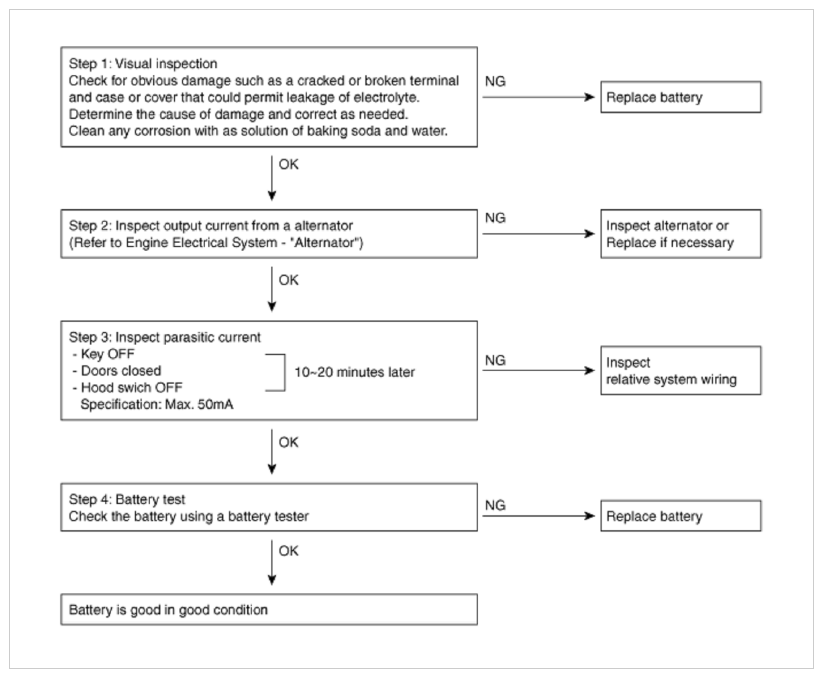

Fig 1: Troubleshooting Chart

G09745542

Courtesy of KIA MOTORS AMERICA, INC.
