Engine mounting bracket

Install the jack to the edge of oil pan to support the engine.

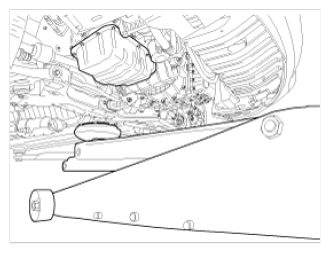

Fig 1: Supporting Engine Mounting Bracket Using Jack
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Insert the rubber block between jack and oil pan.
Disconnect the ground cable (A).
Tightening torque:

10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.0 ~ 10.1 lb-ft)
Remove the engine mounting support bracket (B).
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

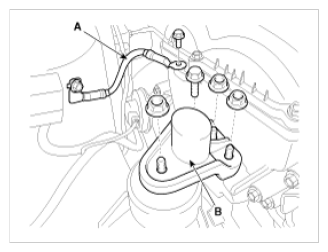

Fig 2: Identifying Engine Mounting Support Bracket And Ground Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine mounting bracket (A).
Tightening torque:

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

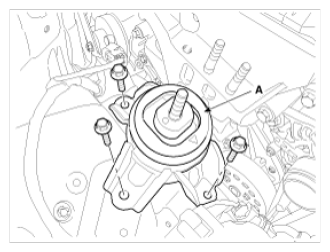

Fig 3: Identifying Engine Mounting Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
