[Measuring Resistance]
WARNING: This page is about a different variant/trim than selected.

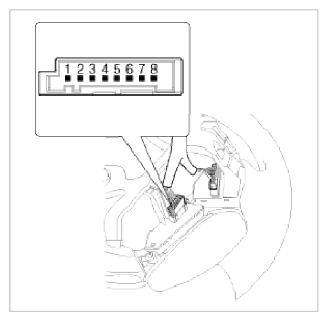

- Check for resistance between terminals in each switch position.
Courtesy of KIA MOTORS AMERICA, INC.
| Function switch |
Connector terminal |
Resistance (±5%) |
| CANCEL |
2-7 |
180 Ω |
| SET- |
2-7 |
330 Ω |
| RES+ |
2-7 |
550 Ω |
| CRUISE |
2-7 |
880 Ω |
