Repair Procedures: Replacement
WARNING: This page is about a different car, the 2013 Hyundai Tucson and 2012 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

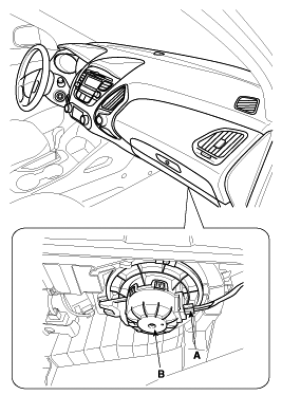

- Disconnect the connector (A) of the blower motor.
- Remove the blower motor (B) after loosening the mounting screws.
Courtesy of HYUNDAI MOTOR CO.
- Installation is the reverse order of removal.
