Components and Components Location: Components

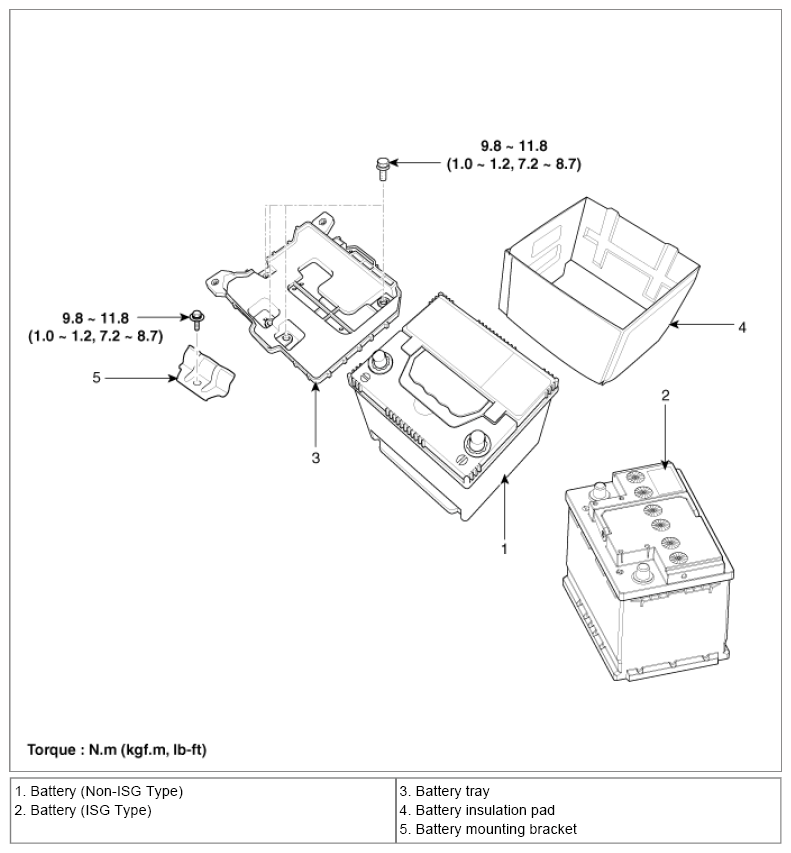

Fig 1: Battery Replacement Components With Torque Specifications
G08321250Courtesy of KIA MOTORS AMERICA, INC.
