Block Diagram

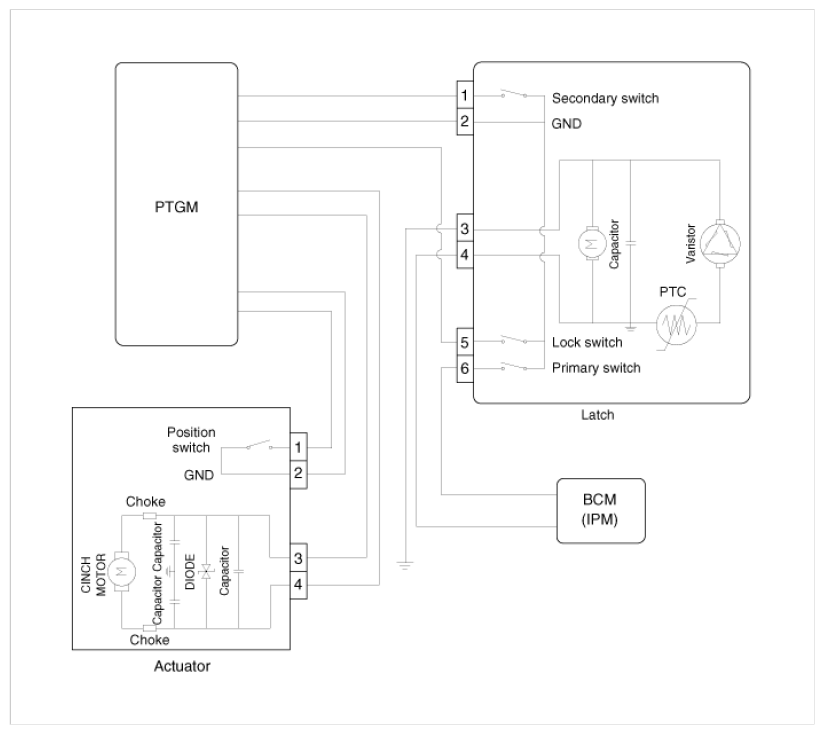

Fig 1: Power Tailgate Block Diagram
G09767184Courtesy of KIA MOTORS AMERICA, INC.

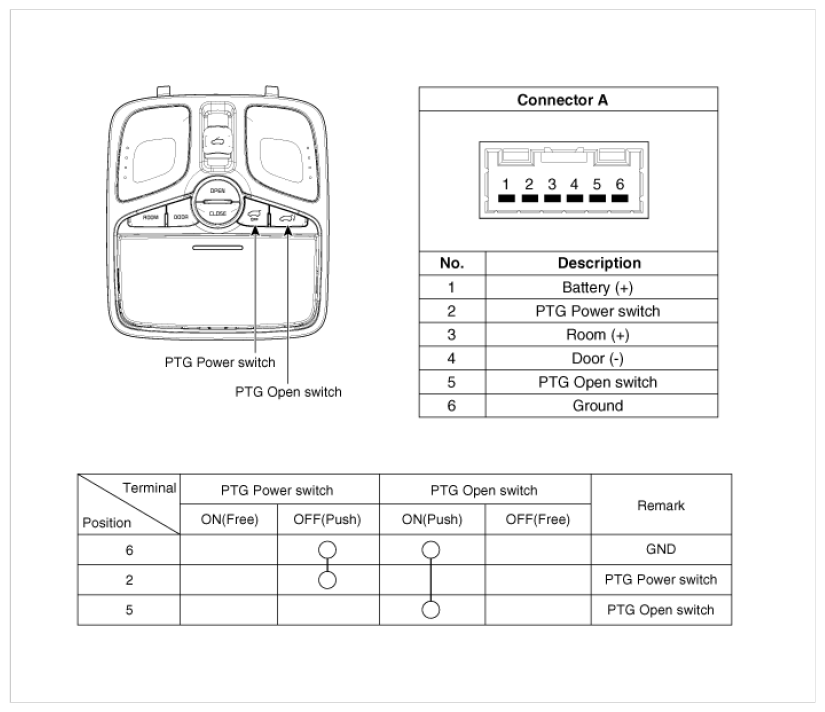

Fig 2: Identifying PTG Power Switch And PTG Open Switch On Console
G09767185Courtesy of KIA MOTORS AMERICA, INC.
