Passenger Power Window Switch

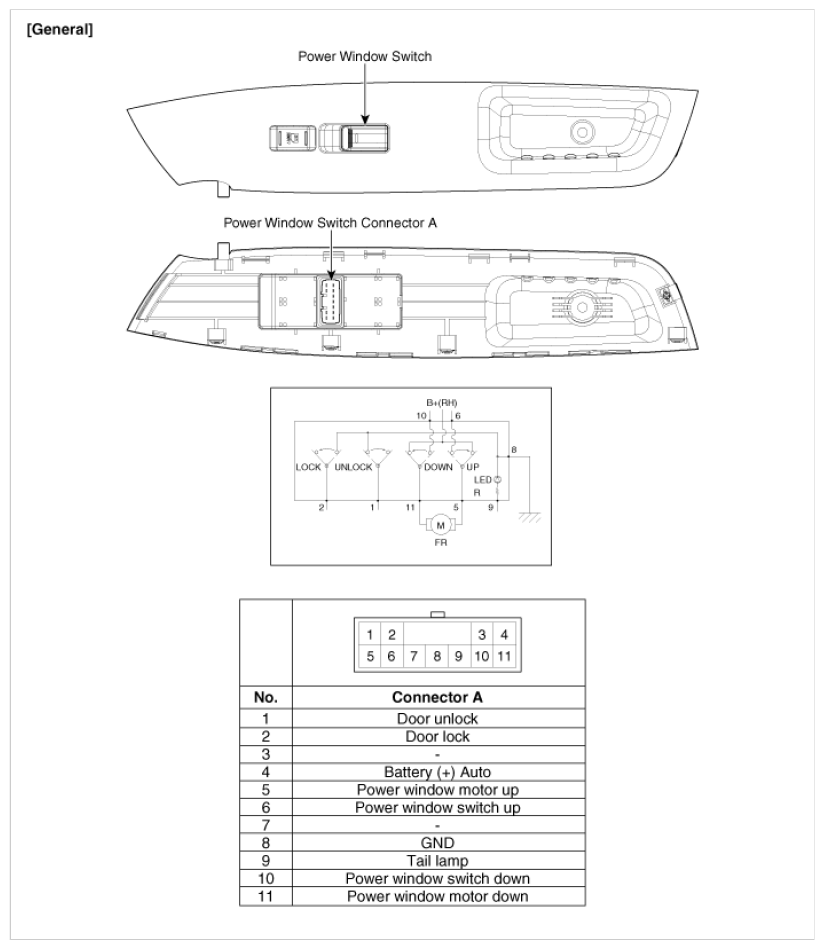

Fig 1: Identifying Power Window Switch And Power Window Switch Connector A (General)
G09767144Courtesy of KIA MOTORS AMERICA, INC.

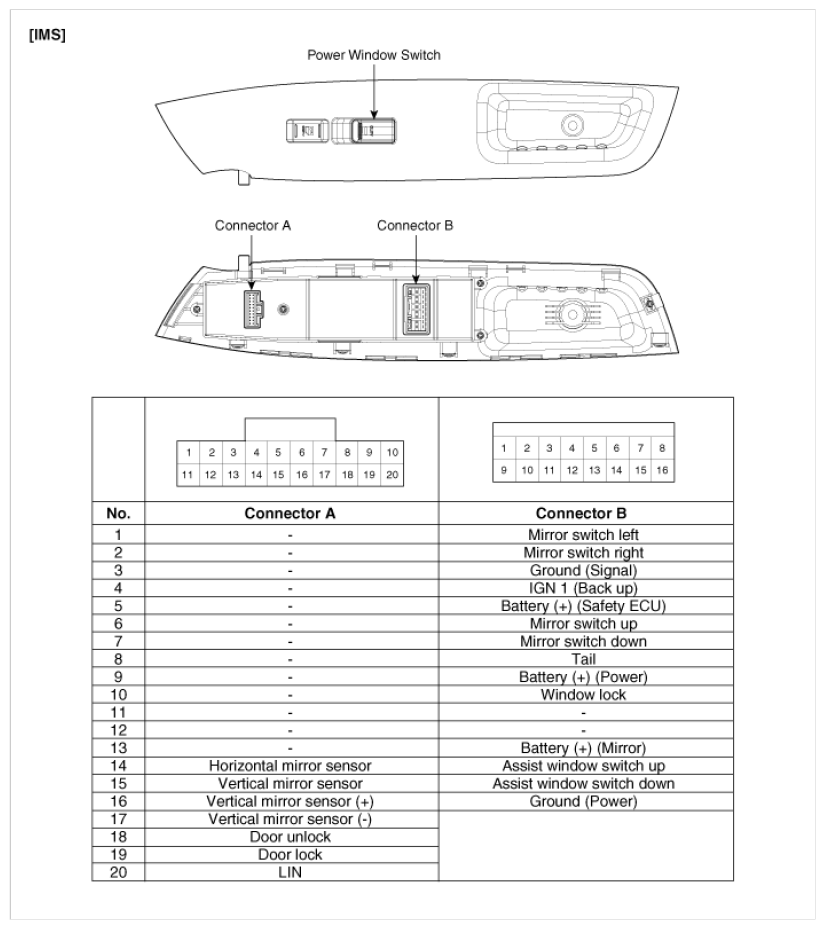

Fig 2: Identifying Power Window Switch, Connector A And Connector B (IMS)
G09767145Courtesy of KIA MOTORS AMERICA, INC.
