Kia
>>
2014
>>
Soul !
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.0L
>>
Purge Control Solenoid Valve (PCSV)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
(M/T)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram: (M/T)

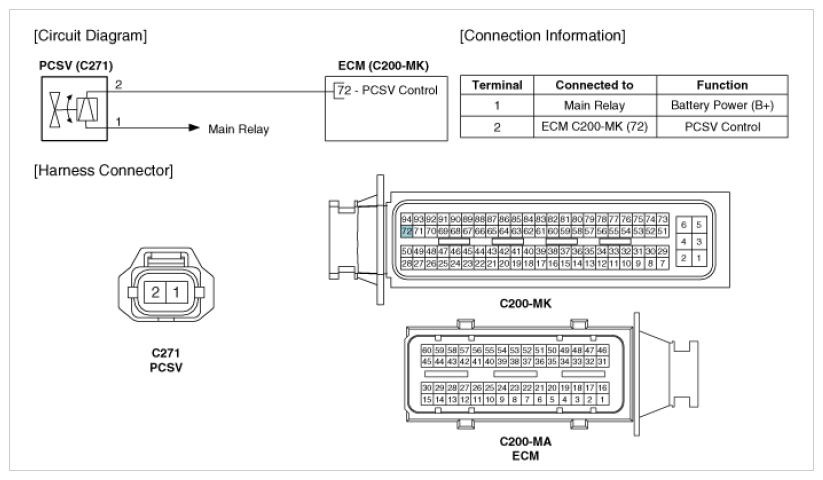

Fig 1: Purge Control Solenoid Valve Circuit Diagram (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
