Components and Components Location: Notes

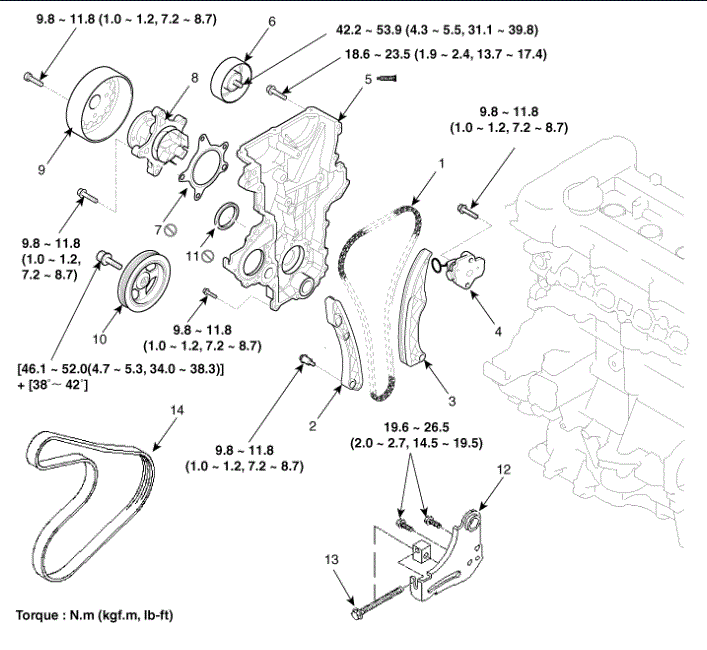

Fig 1: Timing System Replacement Components With Torque Specifications

G00619900
