Monitor GDS status

Connect GDS to Data Link Connector (DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
Is DTC status displayed as Present?

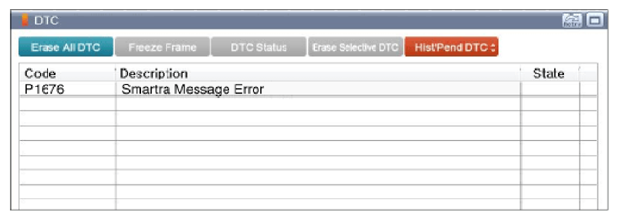

Fig 1: DTC Status Screen
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Go to "MONITOR GDS DATA " procedure.
NO
- Go to "VERIFICATION OF REPAIR " procedure.
