Monitor GDS Data

Connect GDS to DLC (Data Link Cable).
Warm up the engine to normal operating temperature.
Check the "Current Data" with GDS.

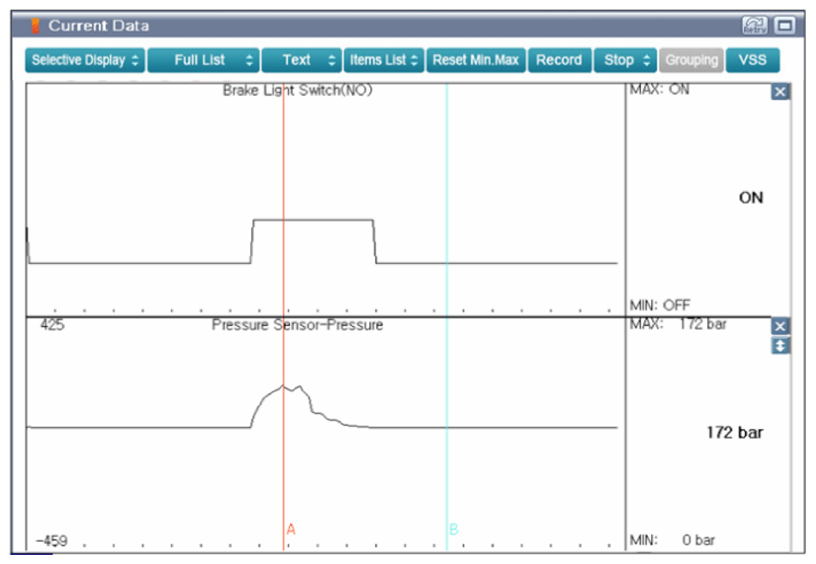

Fig 1: Normal Pressure Sensor Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Are the parameters displayed normally?
YES
- The system is operating correctly at this time. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
