Components And Components Location: Components

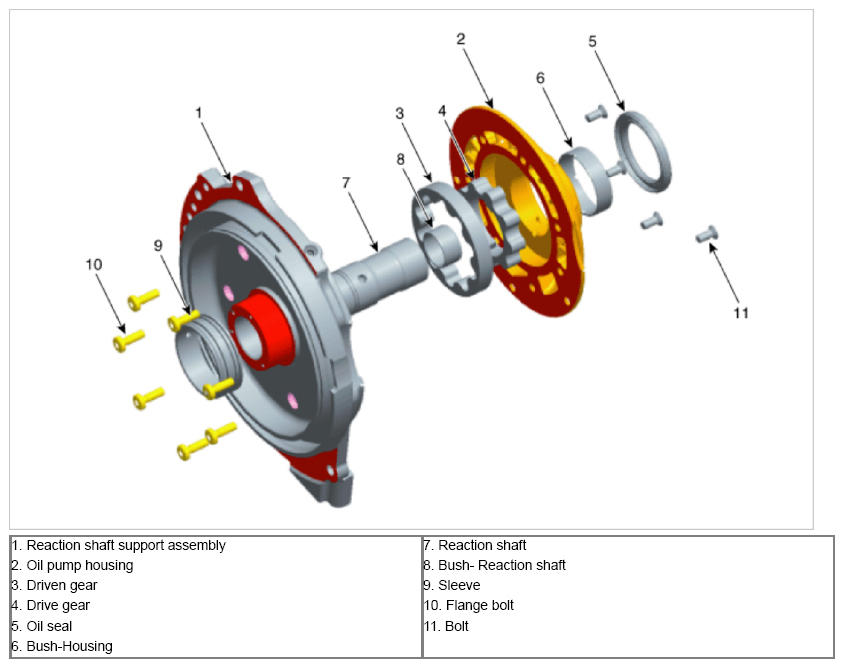

Fig 1: Identifying Components Of Oil Pump Assembly
G09777777Courtesy of KIA MOTORS AMERICA, INC.
