Component Location

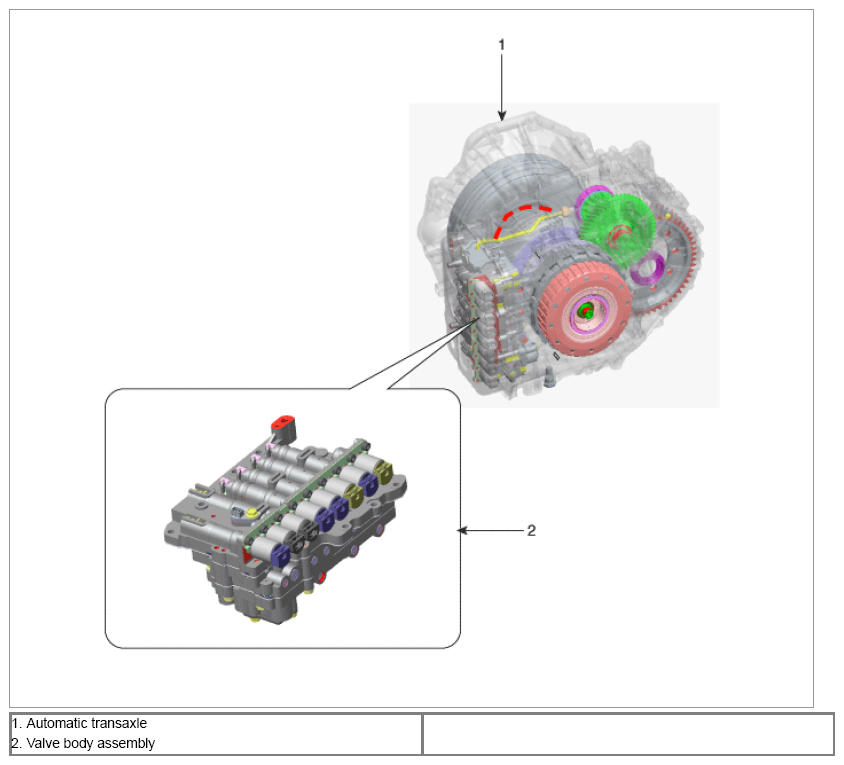

Fig 1: Identifying Automatic Transaxle And Valve Body Assembly
Courtesy of KIA MOTORS AMERICA, INC.

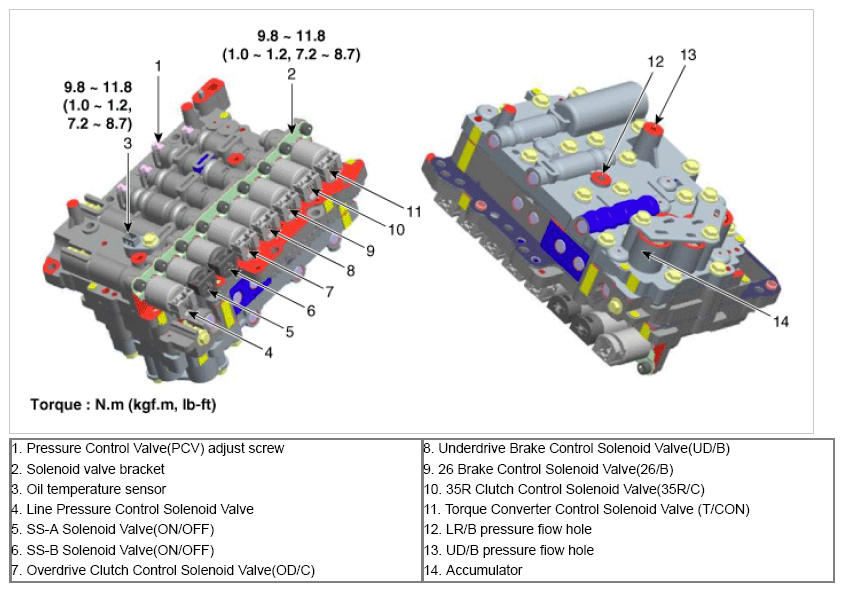

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
