Valve Body Flow

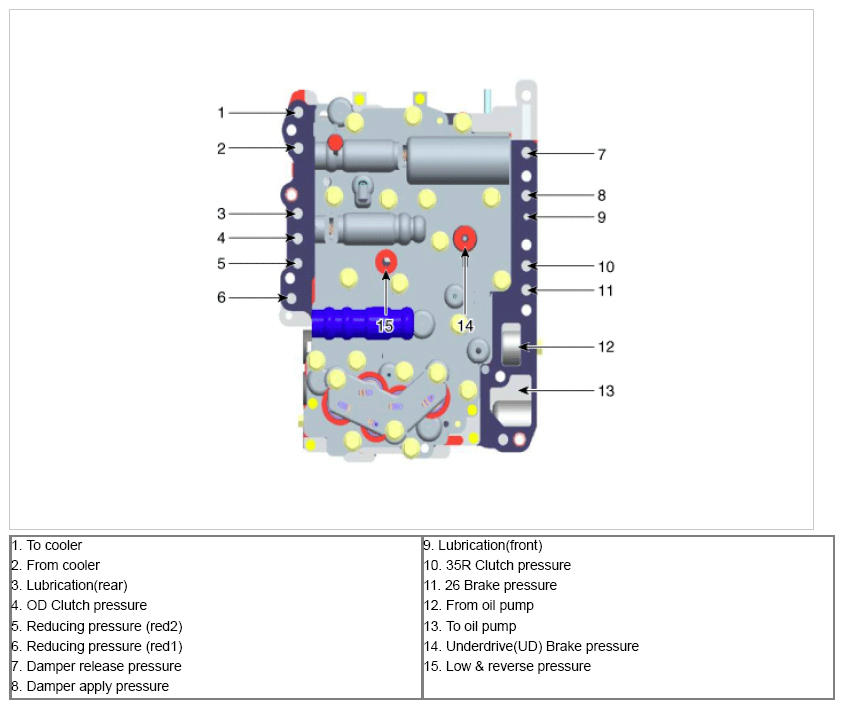

Fig 1: Replacement Components Of Valve Body Flow With Torque Specifications
G09777788Courtesy of KIA MOTORS AMERICA, INC.
