Signal Waveform & Data

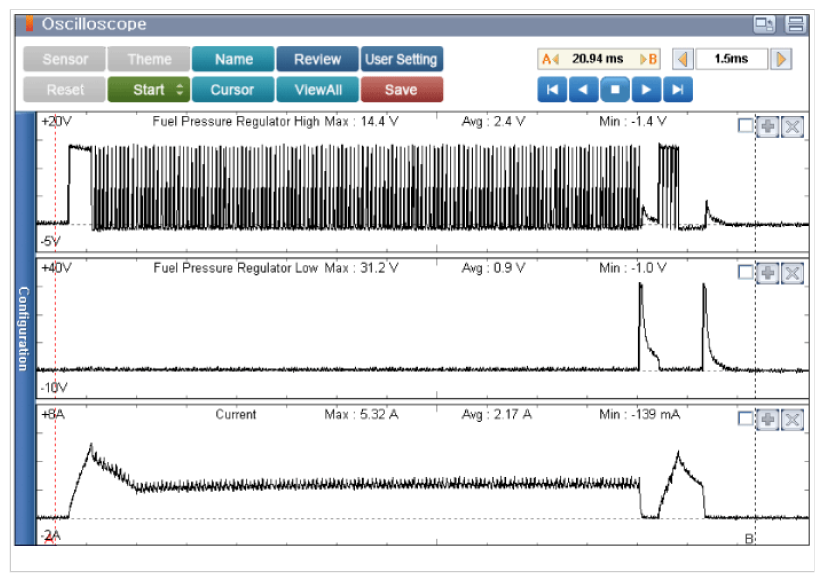

Fig 1: Fuel Pressure Regulator Waveforms - Idle
G09776271Courtesy of KIA MOTORS AMERICA, INC.

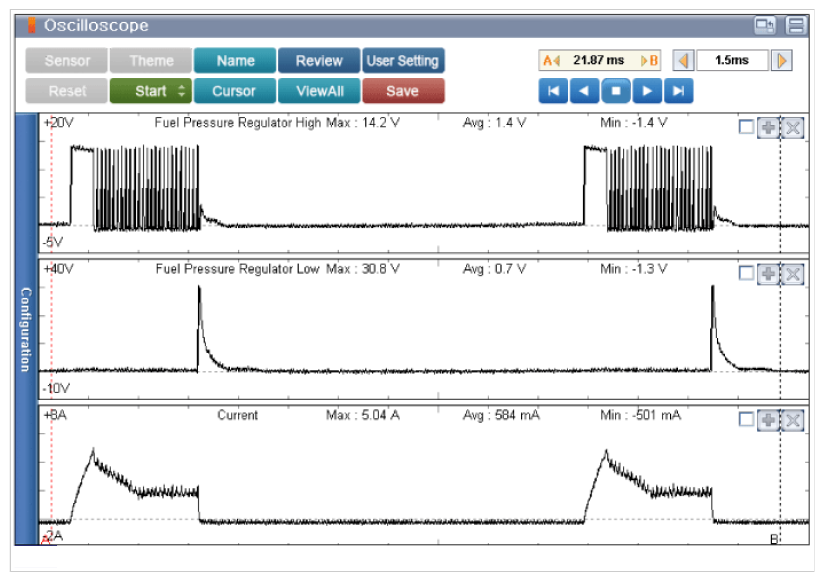

Fig 2: Fuel Pressure Regulator Waveforms - 2000 RPM
G09776272Courtesy of KIA MOTORS AMERICA, INC.

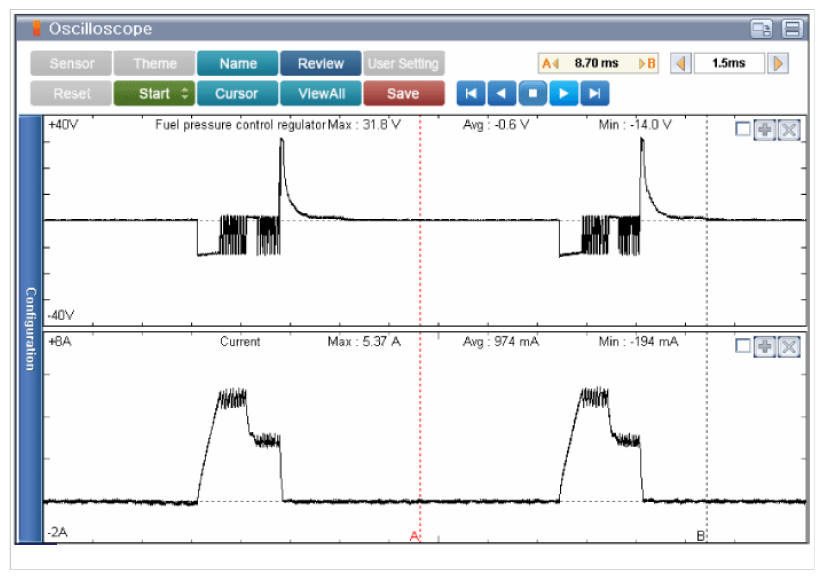

Fig 3: Fuel Pressure Regulator Waveforms - 3000 RPM
G09776273Courtesy of KIA MOTORS AMERICA, INC.
