Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "Neutralization mode".

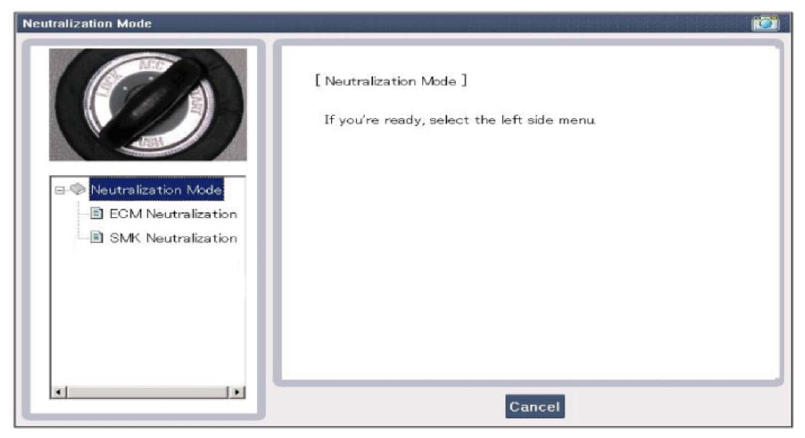

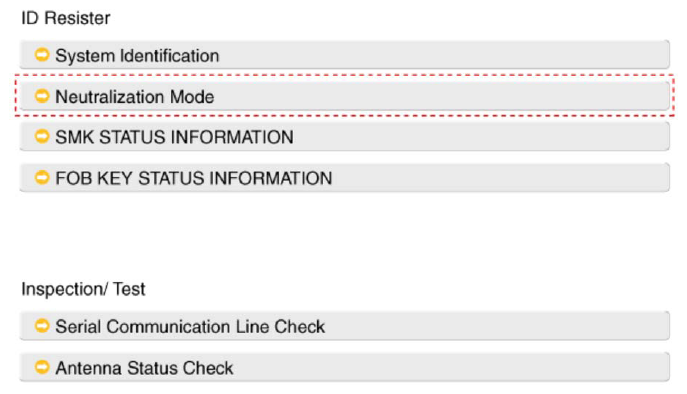

Fig 1: Display - Neutralization Mode Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Display - Neutralization Mode Screen
Courtesy of KIA MOTORS AMERICA, INC.

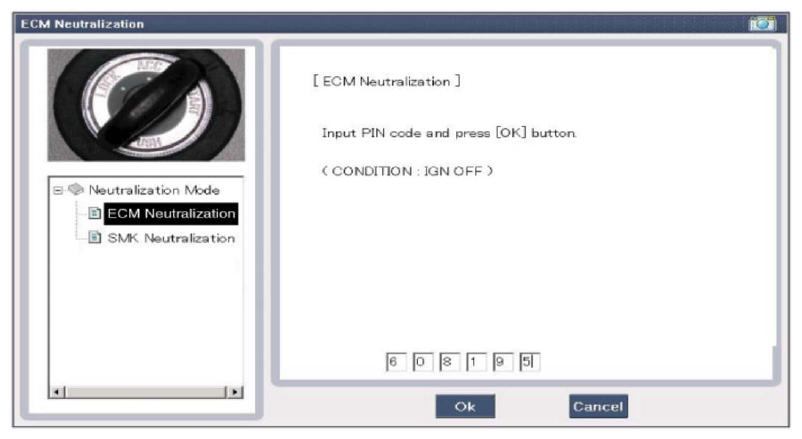

Fig 3: Display - ECM Neutralization Screen
Courtesy of KIA MOTORS AMERICA, INC.

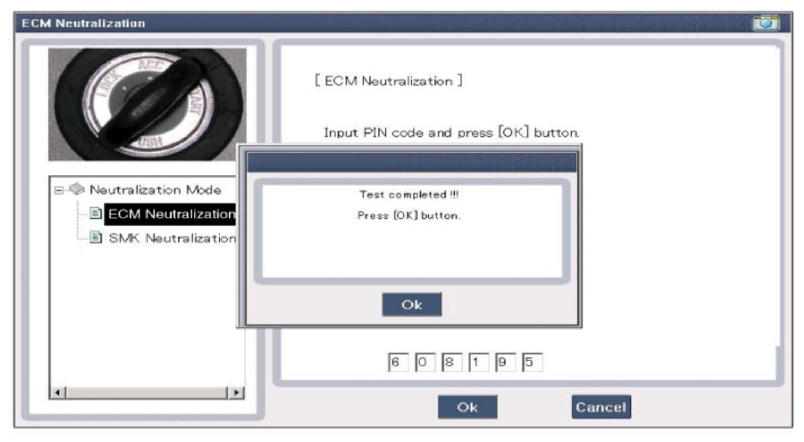

Fig 4: Display - ECM Neutralization Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.

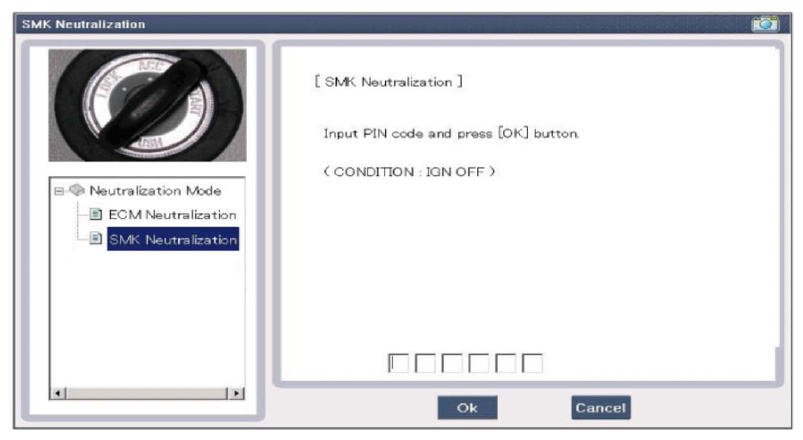

Fig 5: Display - SMK Neutralization Screen
Courtesy of KIA MOTORS AMERICA, INC.

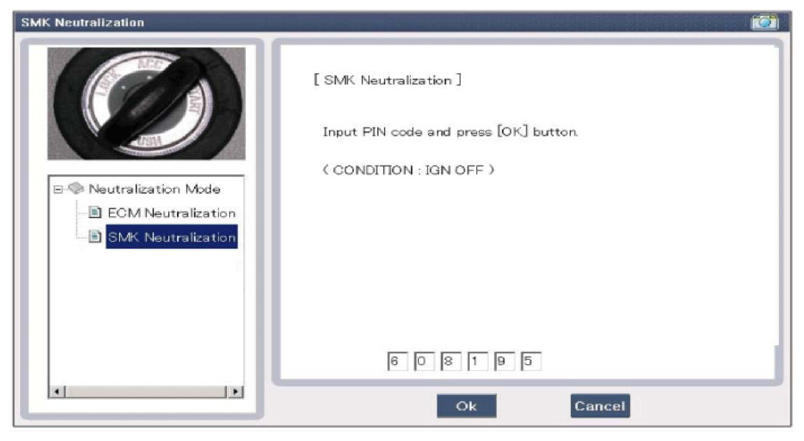

Fig 6: Display - SMK Neutralization Screen
Courtesy of KIA MOTORS AMERICA, INC.

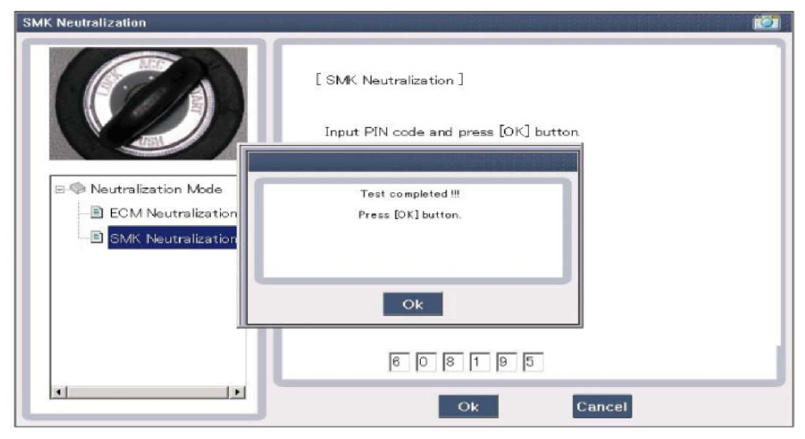

Fig 7: Display - SMK Neutralization Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.

INPUT SWITCH LIST DESCRIPTION

ACTUATOR LIST DESCRIPTION

No.	Item name	Condition
1	Immo.indicator Lamp	Ignition switch ON Engine off
2	External Buzzer	Ignition switch ON Engine off
3	Interior Antenna 1 Active	Ignition switch ON Engine off
4	Interior Antenna 2 Active	Ignition switch ON Engine off
5	Trunk Antenna Active	Ignition switch ON Engine off
6	Bumper Antenna Active	Ignition switch ON Engine off
7	DRV DR Antenna Active	Ignition switch ON Engine off
8	AST DR Antenna Active	Ignition switch ON Engine off
