RF Receiver

NOTE:
  • Take care not to scratch the crash pad and related parts
  1. Disconnect the negative(-) battery terminal.
  2. Remove the rear seat.

    (Refer to "REAR SEAT ")

  3. Remove the rear package tray.

    (Refer to PACKAGE TRAY TRIM REPLACEMENT

  4. Disconnect the RF receiver connector (A).
    Fig 1: Identifying RF Receiver Connector
    G09752616Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the RF receive (A) after loosening the nut (1EA).

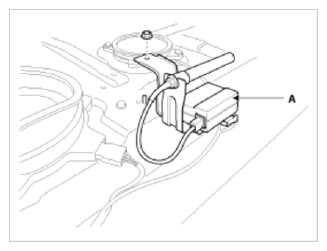

    Fig 2: Identifying RF Receive
    G09752617Courtesy of KIA MOTORS AMERICA, INC.
