Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

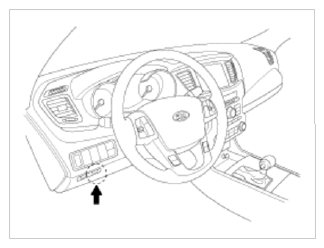

Fig 1: Locating Smart Key Code Of GDS
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

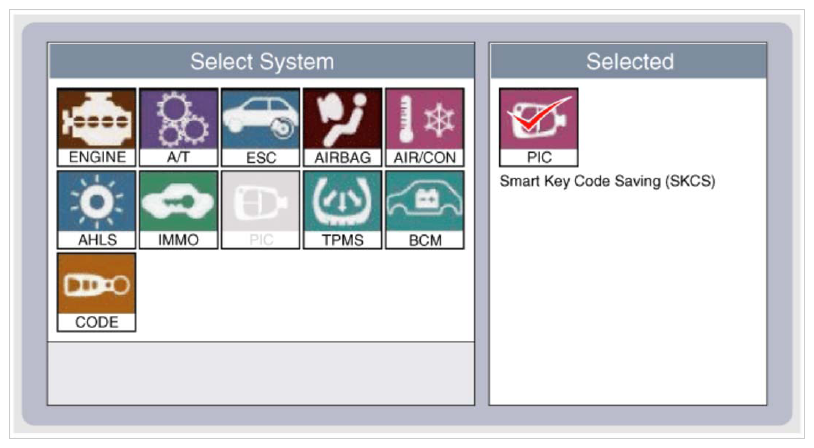

Fig 2: Display - Smart Key Code Saving Screen
Courtesy of KIA MOTORS AMERICA, INC.

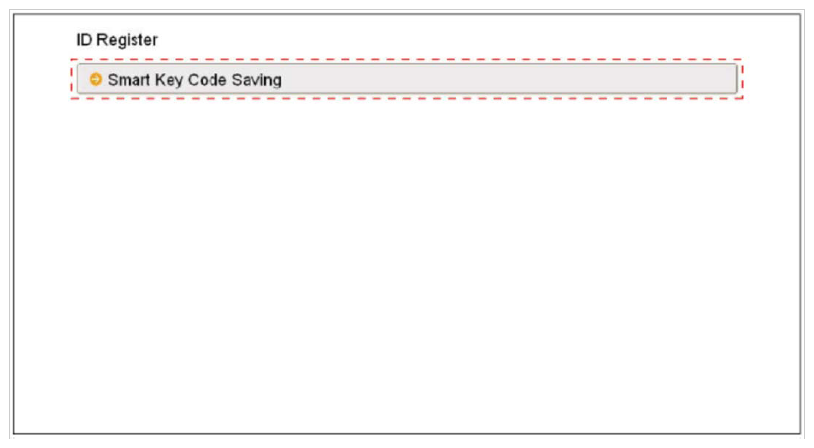

Fig 3: Display - ID Register Screen
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

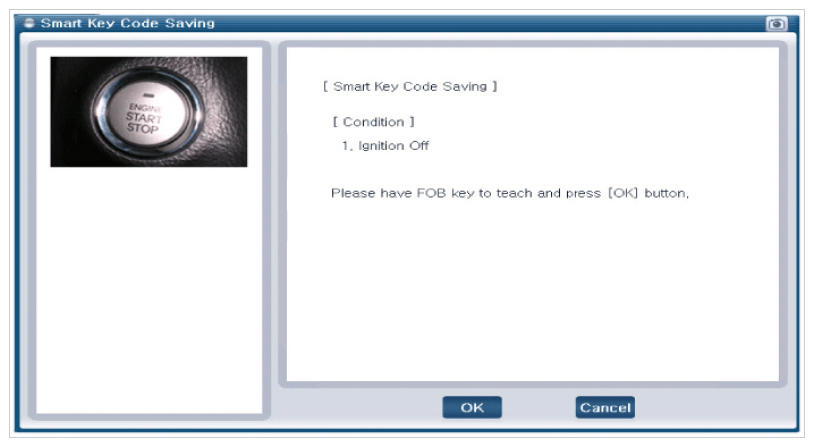

Fig 4: Display - Smart Key Code Saving Screen
Courtesy of KIA MOTORS AMERICA, INC.
After having the teaching smart key, push "ENTER" key.
Input the "Pin code" for first key teaching.

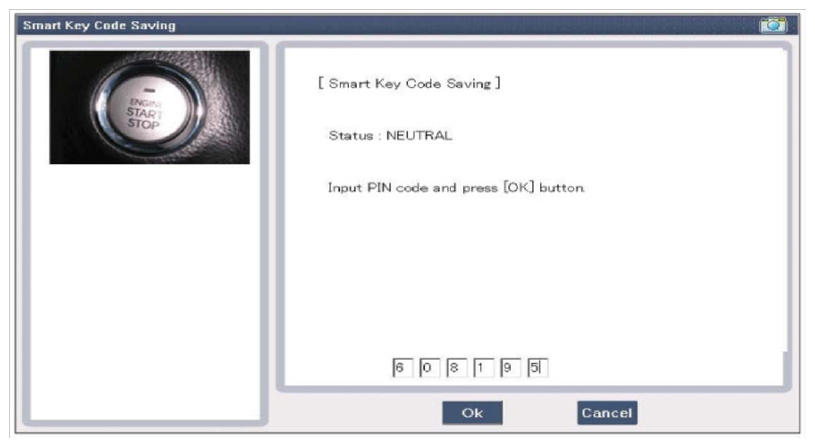

Fig 5: Display - Pin Code Screen
Courtesy of KIA MOTORS AMERICA, INC.

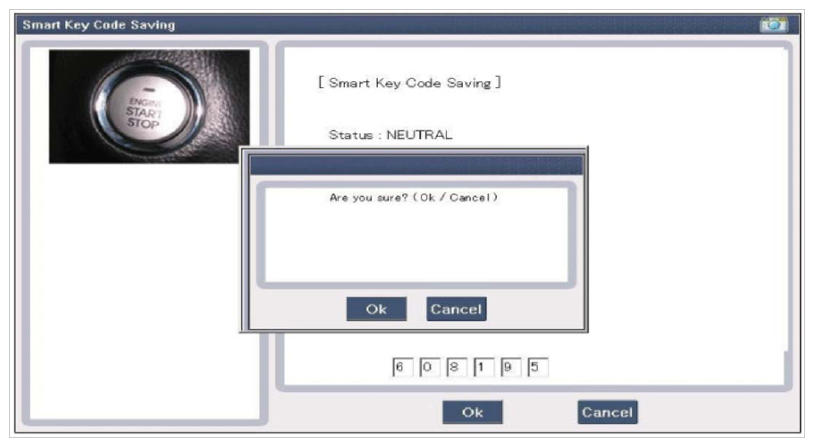

Fig 6: Display - Smart Key Code Saving (OK) Screen
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

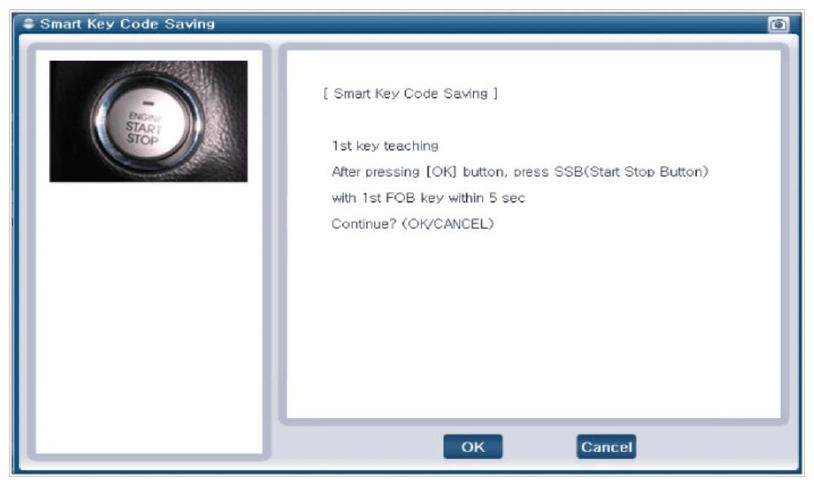

Fig 7: Display - Smart Key Code Saving Processing Button Screen
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 8: Display - First Key Teaching Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Display - First Key Teaching Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

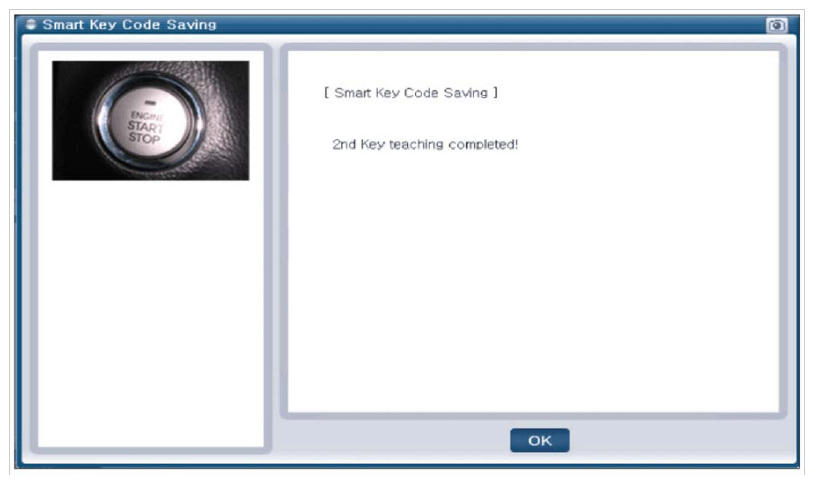

Fig 10: Display - Second Key Teaching Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.

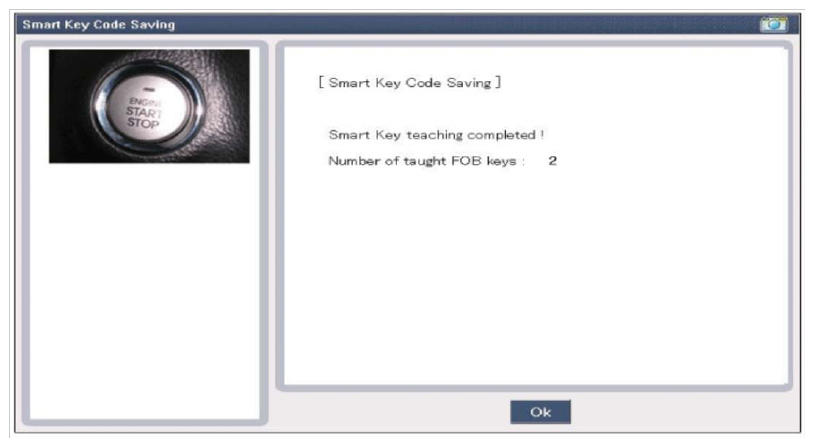

Then the screen will be shown as below when key teaching process is completed.

Fig 11: Display - Second Key Teaching Process Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.
