Repair Procedures: Disassembly

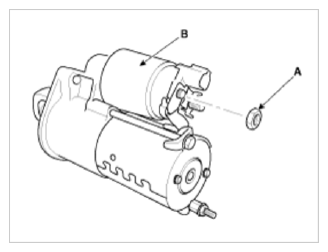

Disconnect the M-terminal (A) on the starter solenoid assembly (B).

Fig 1: Identifying Starter Solenoid Assembly And M-Terminal
Courtesy of KIA MOTORS AMERICA, INC.

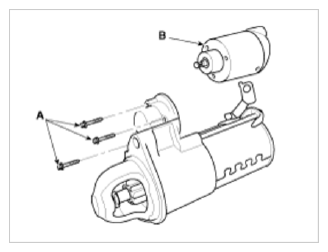

After loosening the 3 screws (A), detach the starter solenoid assembly (B).

Fig 2: Identifying Starter Solenoid Assembly And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the through bolts (A).

Fig 3: Identifying Starter Solenoid Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

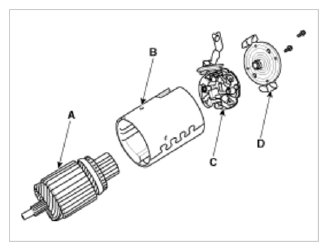

Remove the brush holder assembly (C), the yoke (B), the armature (C) and the rear housing (D).

Fig 4: Identifying Brush Holder Assembly Components
Courtesy of KIA MOTORS AMERICA, INC.
Remove the lever packing (A) and the lever plate (B).

Fig 5: Identifying Lever Packing And Plate
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shield (A) and the packing (B).

Fig 6: Identifying Shield And Packing
Courtesy of KIA MOTORS AMERICA, INC.

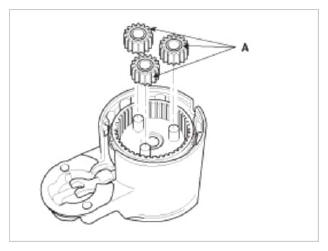

Remove the planet gear (A).

Fig 7: Identifying Planet Gear
Courtesy of KIA MOTORS AMERICA, INC.

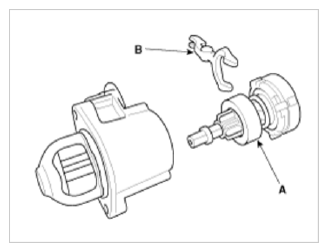

Remove the planet shaft assembly (A) and the lever (B).

Fig 8: Identifying Planet Shaft Assembly And Lever
Courtesy of KIA MOTORS AMERICA, INC.
Press the stopper (A) using a socket (B).

Fig 9: Pressing Stopper Using Socket
Courtesy of KIA MOTORS AMERICA, INC.

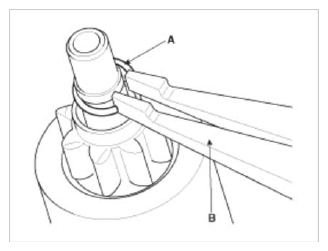

Remove the stop ring (A) using the stop ring pliers (B).

Fig 10: Removing Stop Ring Using Tool
Courtesy of KIA MOTORS AMERICA, INC.

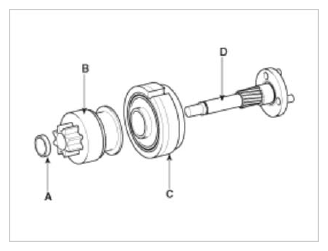

Remove the stopper (A), overrunning clutch (B), internal gear (C) and planet shaft (D).

Fig 11: Identifying Overrunning Clutch Components
Courtesy of KIA MOTORS AMERICA, INC.

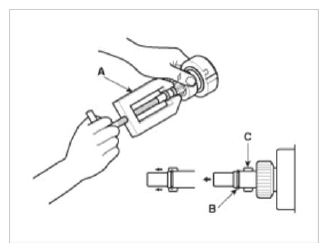

NOTE: Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C).

Fig 12: Pulling Overrunning Clutch Stop Ring Over Stopper Using Tool
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.
