Repair Procedures: Removal

Air cleaner assembly and air duct.
(Refer to "AIR CLEANER ")
Battery and battery tray.
(Refer to "BATTERY ")

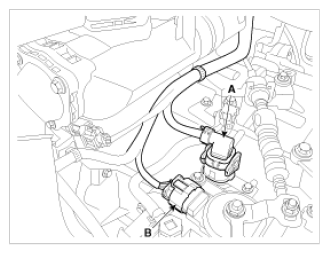

Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).

Fig 1: Identifying Solenoid Valve And Inhibitor Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

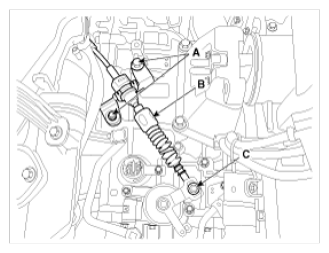

Remove the control cable (B) after removing the nut (C) and the bolt (A).
Tightening torque

(A) 14.7 ~21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)

(C) 8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 2: Identifying Control Cable, Nut And Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring bracket installation bolt (A, B).

Fig 3: Identifying Wiring Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

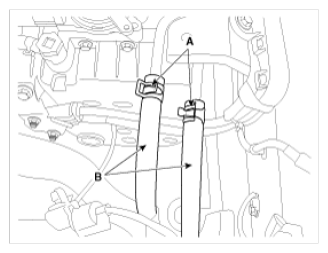

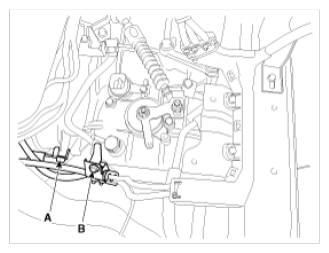

Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

Fig 4: Identifying Automatic Transaxle Fluid Cooler Hose And Clamp
Courtesy of KIA MOTORS AMERICA, INC.

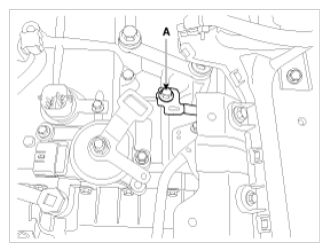

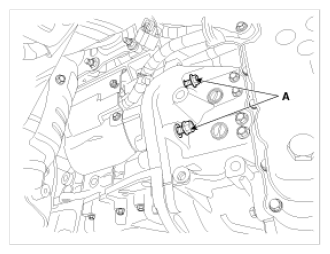

Remove the wiring bracket installation bolt (A).

Fig 5: Identifying Wiring Bracket Installation Bolt
Courtesy of KIA MOTORS AMERICA, INC.

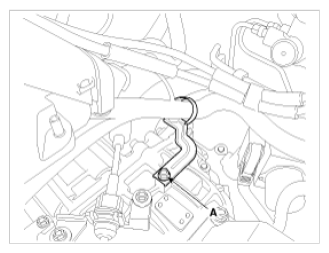

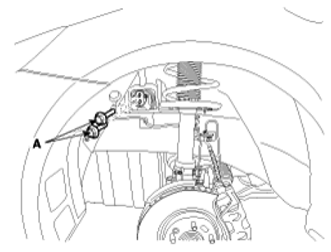

Remove the ground line after removing the bolt (A).

Fig 6: Identifying Ground Line Bolts
Courtesy of KIA MOTORS AMERICA, INC.

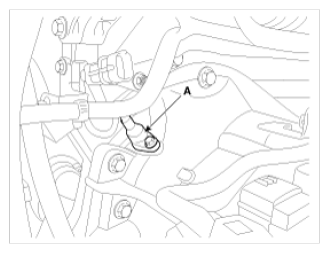

Remove the Crankshaft Position Sensor (A).

Fig 7: Identifying Crankshaft Position Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Install the towing eye (A).

Fig 8: Identifying Towing Eye
Courtesy of KIA MOTORS AMERICA, INC.
Assemble the engine support fixture.
(Refer to "SPECIAL SERVICE TOOLS - Engine support fixture assembly ")

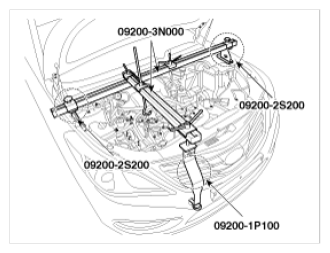

Install the engine support fixture.

Fig 9: Installing Engine Support Fixture
Courtesy of KIA MOTORS AMERICA, INC.

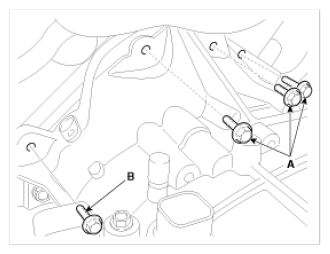

Remove the automatic transaxle upper mounting bolts (A, B).
Tightening torque

(A): 63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

(B): 32.4 ~ 49.0 N.m (3.3 ~ 5.0 kgf.m, 23.9 ~ 36.2 lb-ft)

Fig 10: Identifying Automatic Transaxle Upper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

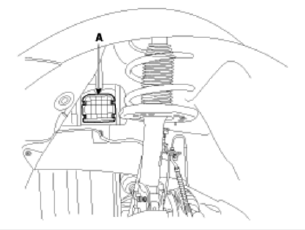

Remove the cover (A).

Fig 11: Identifying Transaxle Mount Cover
Courtesy of KIA MOTORS AMERICA, INC.

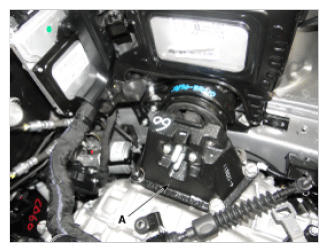

Remove the automatic transaxle mounting bracket bolt (A).
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65 ~ 79.5 lb-ft)

Fig 12: Identifying Automatic Transaxle Mounting Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the automatic transaxle support bracket (A).
Tightening torque

Bolt: 58.8 ~ 78.4 N.m (6.0 ~ 8.0 kgf.m, 43.3 ~ 57.8 lb-ft)

Nut: 78.5 ~ 98.1 N.m (8.0 ~ 10.0 kgf.m, 57.9 ~ 72.3 lb-ft)

Fig 13: Identifying Automatic Transaxle Support Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle with a jack.

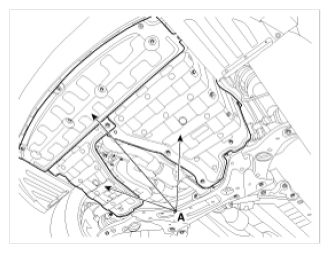

Remove the under cover (A).

Fig 14: Identifying Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive shaft assembly.
(Refer to "FRONT DRIVESHAFT ")
Remove the sub frame assembly.
(Refer to "FRONT CROSS MEMBER )

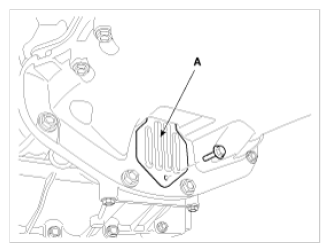

Remove the bell housing cover (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 15: Identifying Bell Housing Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the torque converter mounting bolt (A-6ea) with rotating the crankshaft.
Tightening torque:

45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

Fig 16: Identifying Torque Converter Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the starter mounting bolt (A).
Tightening torque:

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

Fig 17: Identifying Starter Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

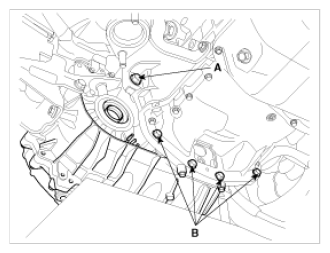

Remove the automatic transaxle with a jack after removing the mounting bolt (A-1ea, B-4ea).
Tightening torque
1. 39.2 ~ 46.1 N.m (4.0 ~ 4.7 kgf.m, 28.9 ~ 34.0 lb-ft)
2. 78.5 ~ 98.1 N.m (8.0 ~ 10.0 kgf.m, 57.9 ~ 72.3 lb-ft)

  Fig 18: Identifying Automatic Transaxle Mounting Bolt
  Courtesy of KIA MOTORS AMERICA, INC.
