Repair Procedures: Removal

Remove the fuel pump (Refer to "FUEL PUMP ").

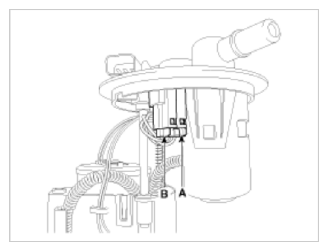

Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

Fig 1: Electric Pump Wiring Connector And Fuel Sender Connector
Courtesy of KIA MOTORS AMERICA, INC.

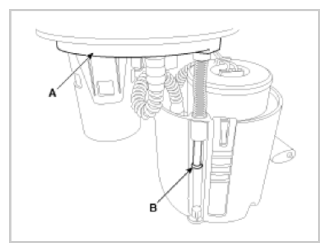

Remove the head assembly (A) after releasing the cushion fixing clip (B).

Fig 2: Head Assembly And Cushion Fixing Clip
Courtesy of KIA MOTORS AMERICA, INC.

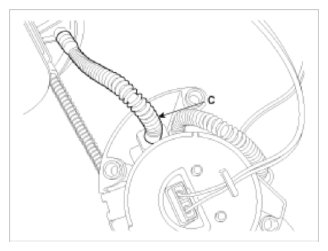

Disconnect the fuel tube quick-connectors (C).

Fig 3: Fuel Tube Quick-Connectors
Courtesy of KIA MOTORS AMERICA, INC.

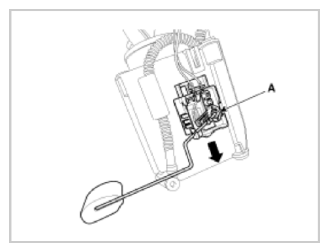

Remove the fuel sender (A) in the direction of an arrow.

Fig 4: Removing Fuel Sender
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel tube connector (A).

Fig 5: Fuel Tube Connector
Courtesy of KIA MOTORS AMERICA, INC.

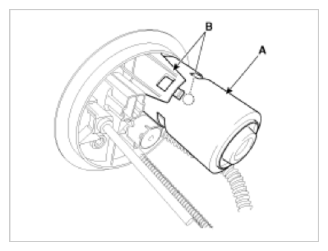

Remove the cut valve (A) after releasing hooks (B).

Fig 6: Cut Valve And Releasing Hooks
Courtesy of KIA MOTORS AMERICA, INC.

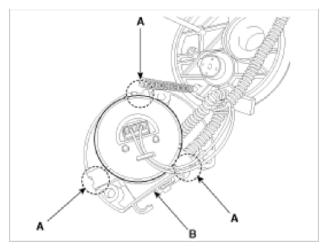

Remove the reservoir-cup (B) after releasing the fixing hooks (A).

Fig 7: Reservoir-Cup And Fixing Hooks
Courtesy of KIA MOTORS AMERICA, INC.

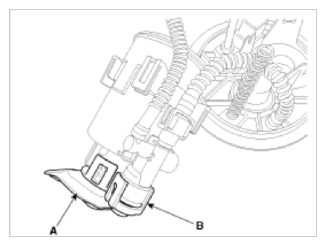

Release the fixing hooks, and then remove the pre-filter (A) and the fuel pressure regulator (B).

Fig 8: Pre-Filter And Fuel Pressure Regulator
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful of O-ring.

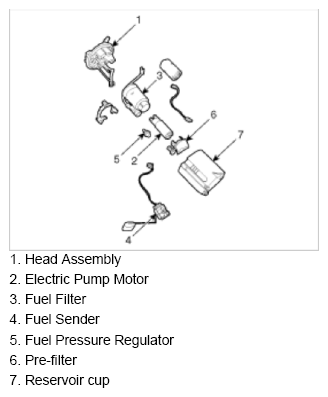

Fig 9: Electric Pump Motor Related Components
Courtesy of KIA MOTORS AMERICA, INC.
