Components And Components Location: Components

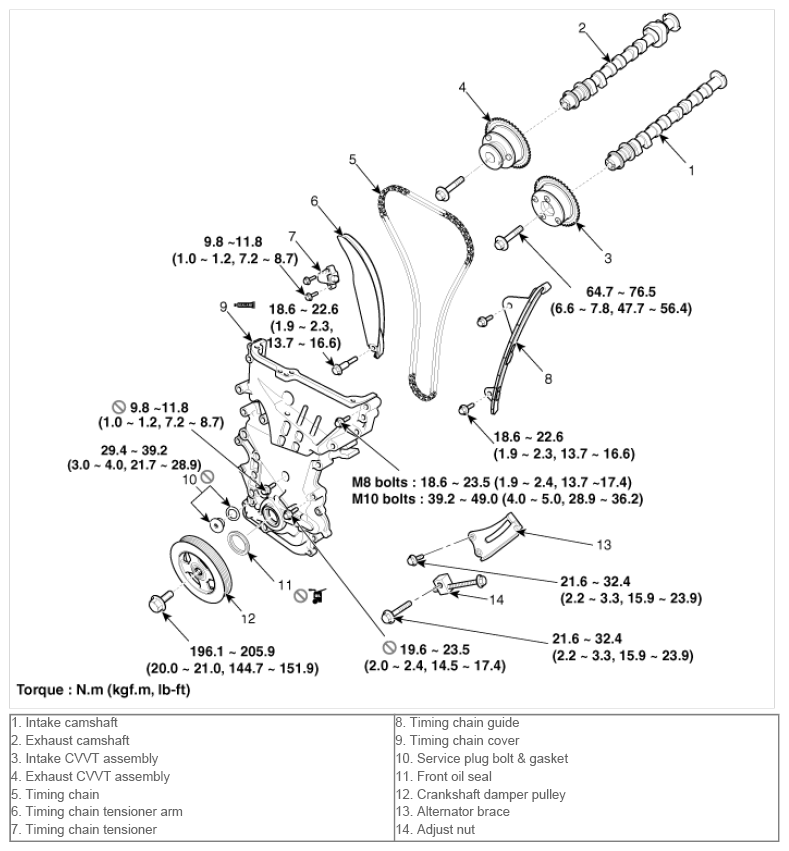

Fig 1: Exploded View Of Timing System Components With Torque Specifications
G09742486Courtesy of KIA MOTORS AMERICA, INC.
