Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")
Disconnect the back up lamp switch connector (A).

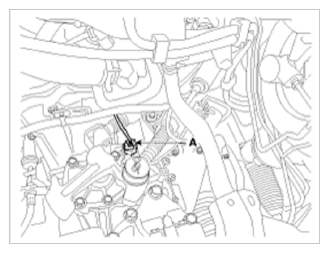

Fig 1: Back Up Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.

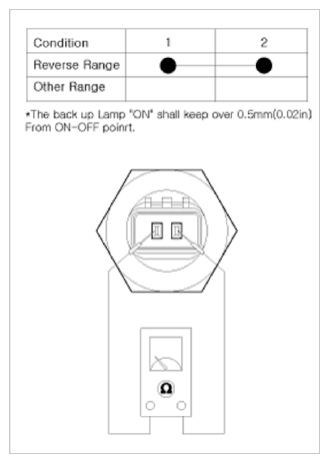

Fig 2: Checking Continuity Between No. 1 And 2 Terminals Of Backup Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.
