Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")
Disconnect the back up lamp switch connector (A).

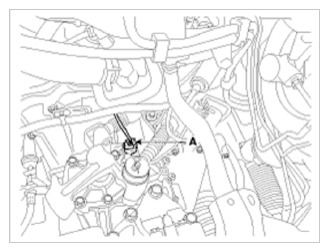

Fig 1: Back Up Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the back up lamp switch (A).

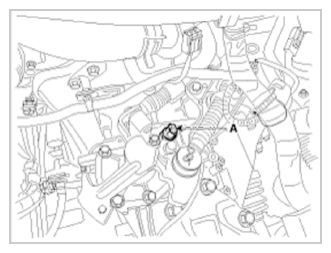

Fig 2: Back Up Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.
Replace a new one and install the back up lamp switch.
Tightening Torque:

39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)
