Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")
Disconnect the vehicle speed sensor (A).

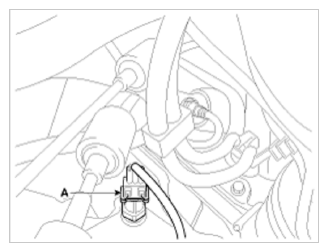

Fig 1: Vehicle Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Remove the vehicle speed sensor (A) and driven gear.
Tightening Torque:

5.9 ~ 7.8 N.m (0.6 ~ 0.8 kgf.m, 4.3 ~ 5.8 lb-ft)

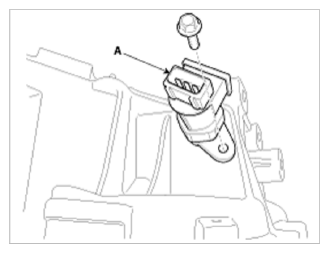

Fig 2: Vehicle Speed Sensor And Driven Gear
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: After removing speed sensor, be careful not to enter dust, foreign matters, etc in speed sensor hole.
Separate the vehicle speed sensor (A) and driven gear (B).

Fig 3: Vehicle Speed Sensor And Driven Gear
Courtesy of KIA MOTORS AMERICA, INC.
