Repair Procedures: Inspection

The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
To diagnose the BCM function, select the menu of model and body control module.

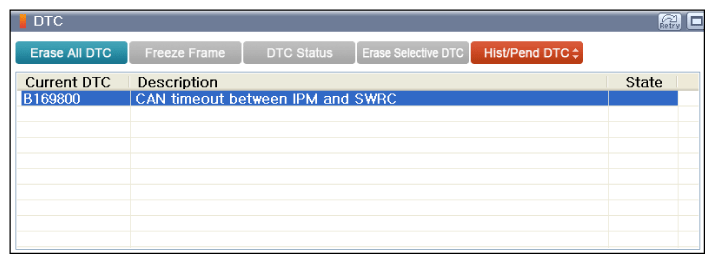

Fig 1: Display - DTC Description Screen
Courtesy of KIA MOTORS AMERICA, INC.
Select "Input/output monitoring", if you will check current data of body network system. It provides input/output status of each module.

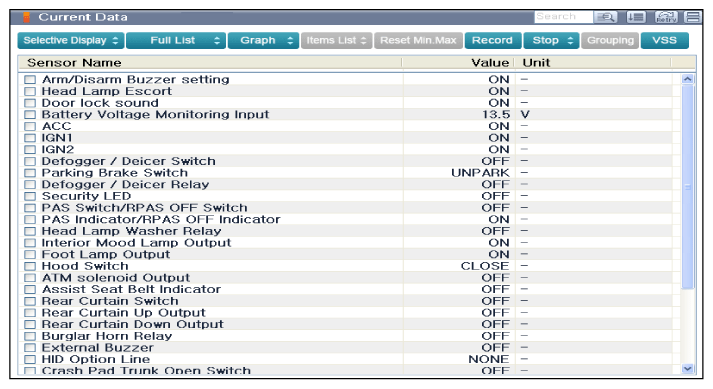

Fig 2: Display - Body Network System Current Data Screen
Courtesy of KIA MOTORS AMERICA, INC.
If you will check each module data operation forcefully, select "Actuation test".

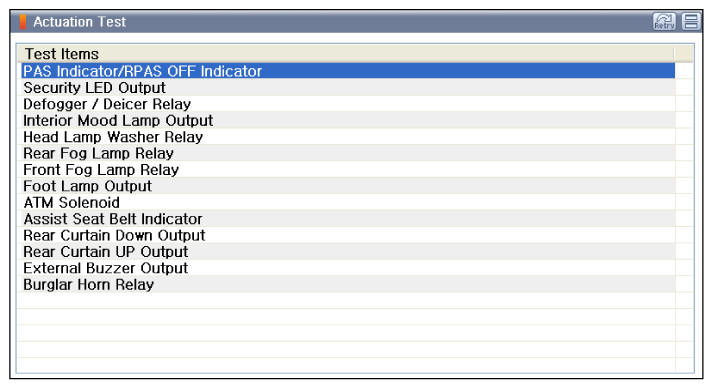

Fig 3: Display - PAS Indicator Actuation Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
If you want to change user option, select "user option".

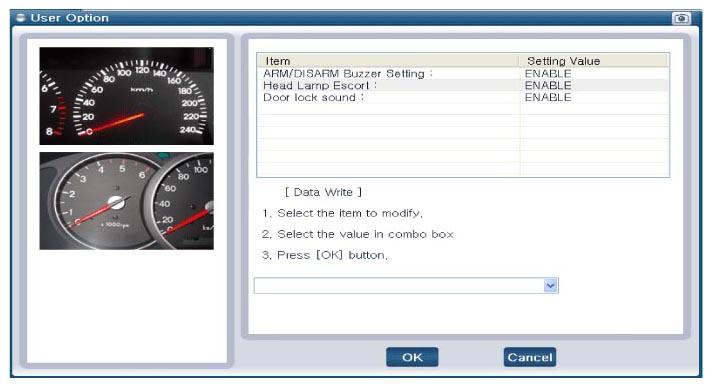

Fig 4: Display - ID Register User Operation Screen

Courtesy of KIA MOTORS AMERICA, INC.

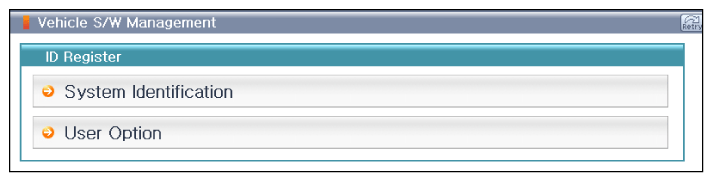

Fig 5: Display - User Operation Screen

Courtesy of KIA MOTORS AMERICA, INC.
