Component Location

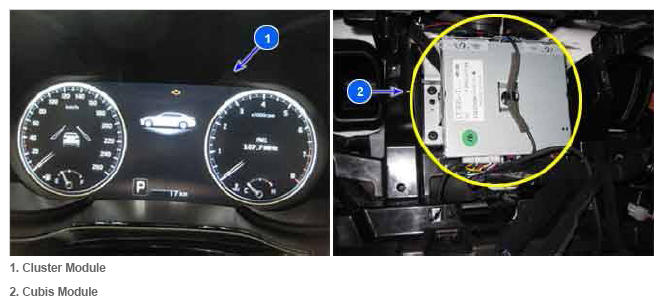

Fig 1: Cluster Module And Cubis Module Location

G10717608

Courtesy of KIA MOTORS AMERICA, INC.
