RF Receiver

WARNING: This page is about a different variant/trim than selected.

NOTE:

Disconnect the negative (-) battery terminal.
Remove the glove box.
(Refer to the "CRASH PAD ")

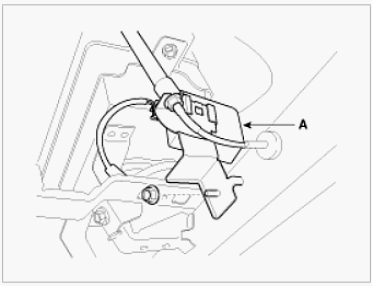

Remove the RF receiver (A) after loosening the mounting nuts (1EA) and disconnecting the connector.

Fig 1: Identifying RF Receiver
Courtesy of KIA MOTORS AMERICA, INC.
