Repair procedures: Installation
- Install in the reverse order of removal.
NOTE:
- Make sure that shift lever and manual control lever is "N" range before you install the shift cable.
- Insert securely after check the orientation of socket (A) of cable.
- Insert the shift cable after checking the direction of projection (B) to prevent wrong assembly.
Courtesy of KIA MOTORS AMERICA, INC.

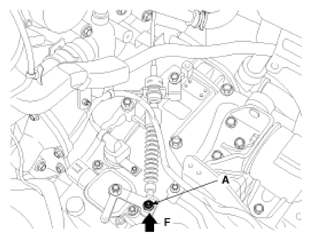

- Tighten the nut to specified torque after removing free play by pushing "F" direction When installing the shift cable at transaxle side.
Courtesy of KIA MOTORS AMERICA, INC.
- Refill the hybrid motor cooling system with coolant and then perform the air bleeding using the GDS. (Refer to COOLANT
)
