Smart Key Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "SMK STATUS INFO".

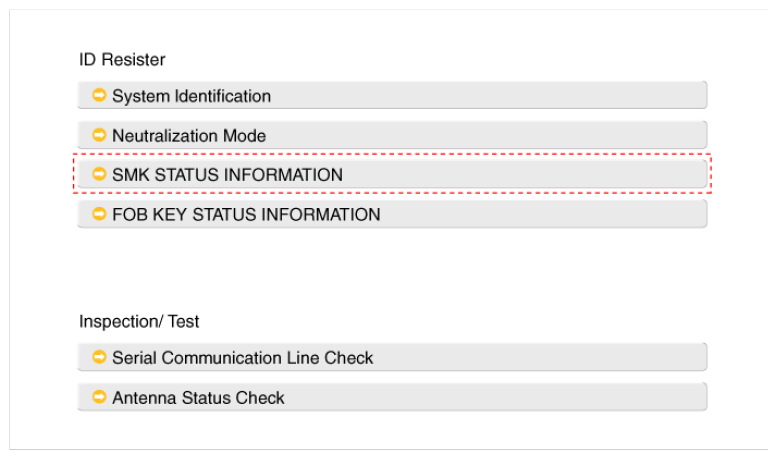

Fig 1: Screen Display - Selecting SMK STATUS INFO
Courtesy of KIA MOTORS AMERICA, INC.

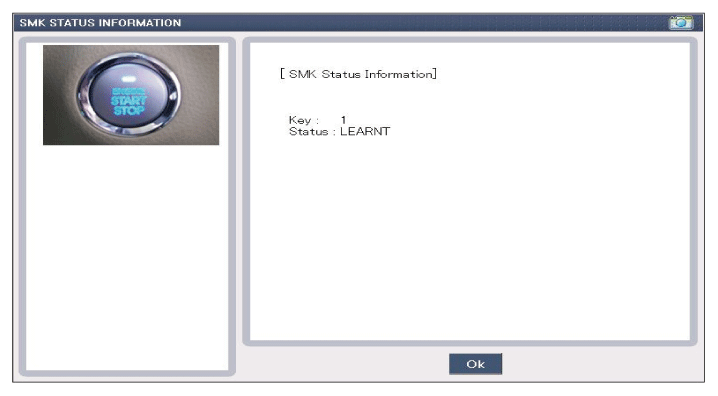

Fig 2: Screen Display - SMK STATUS INFORMATION
Courtesy of KIA MOTORS AMERICA, INC.
