Trunk Lid Open Switch

  1. Check for continuity between the Trunk lid open switch terminals.

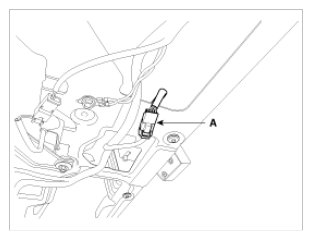

    Fig 1: Identifying Trunk Lid Open Switch
    G08322892Courtesy of KIA MOTORS AMERICA, INC.
  2. If continuity is not specified, inspect the switch
    Fig 2: Trunk Lid Open Switch Terminals Continuity Chart
    G08322893Courtesy of KIA MOTORS AMERICA, INC.
