Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the negative (-) battery cable.

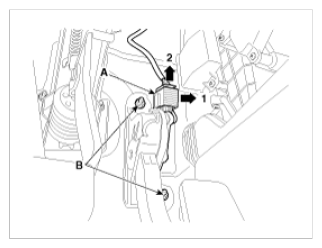

- Disconnect the accelerator position sensor connector (A).
- Remove the installation nuts (B), and then remove the accelerator pedal module.
Courtesy of KIA MOTORS AMERICA, INC.
