Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to the "INTERIOR (CRASH PAD) ")

    NOTE: Take care not to scratch the crash pad and related parts.
  3. Disconnect the connectors and remove the BCM (A) after loosening the nut and the bolt.

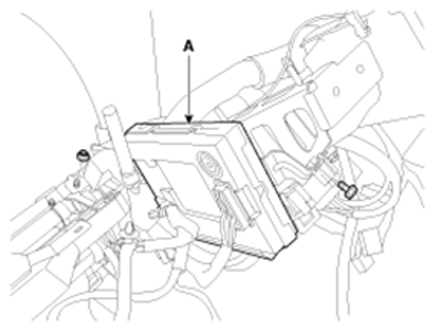

    Fig 1: Identifying Body Control Module With Nut And Bolt
    G08322949Courtesy of KIA MOTORS AMERICA, INC.
