System Inspection

■ Visual Check

1. Need to inspect visually/physically the following items:
   • Vaccuum line leakage
   • Intake air leak after throttle body
   • Damaged PCSV
   • Damaged ETC
   • Sludged throttle body
2. Have any problems been found?

   YES

   • Repair as necessary and go to "Verification Of Vehicle Repair " procedure.

   NO

   • Clear DTC and Test-drive under enable conditions above-mentioned. After the test, If this DTC is set, go to "ETC TEST" procedure. If not, troubleshooting is completed.

■ ETC TEST

1. Connect GDS to Data Link Cable (DLC).
2. IG "ON" & ENG "OFF".
3. Select the "Vehicle S/W Management" about related DTC with GDS.

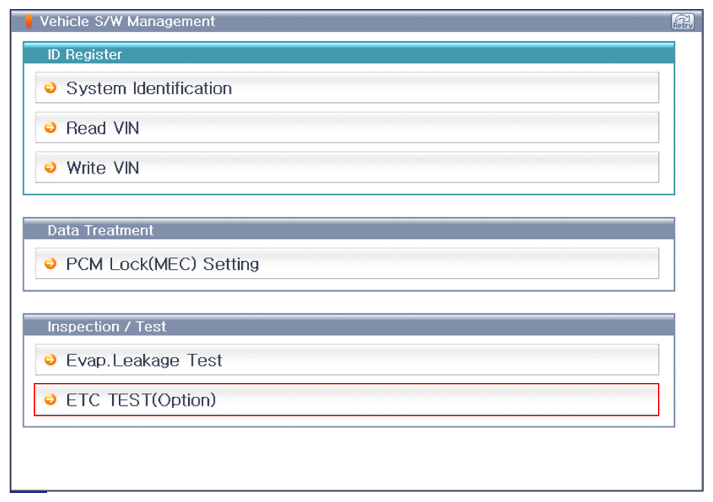

   Fig 1: Screen Display - ETC Test (Option)

   Courtesy of KIA MOTORS AMERICA, INC.

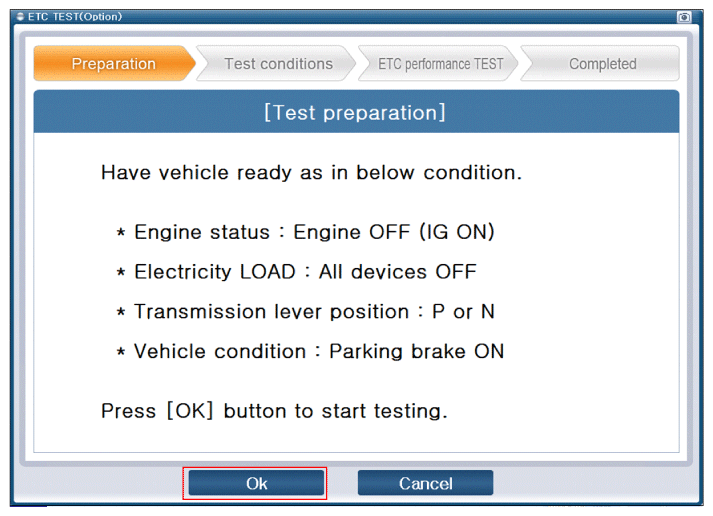

   Fig 2: Screen Display - ETC Test (Preparation)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Screen Display - ETC Test (Conditions)

   Courtesy of KIA MOTORS AMERICA, INC.

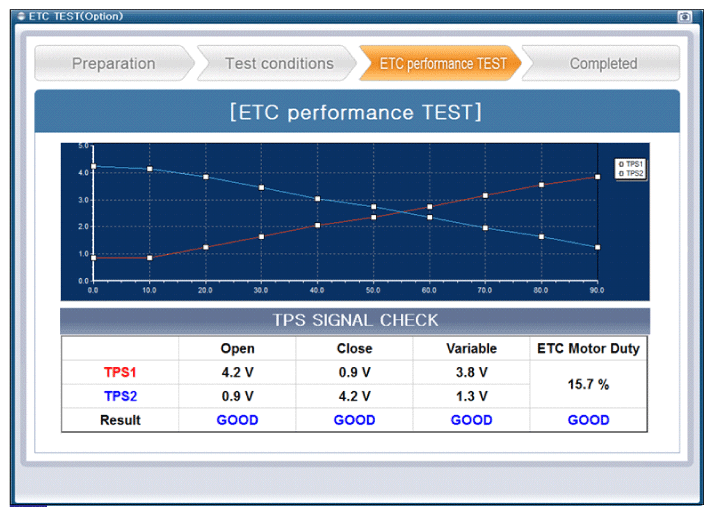

   Fig 4: Screen Display - ETC Test (Performance)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 5: Screen Display - ETC Test (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "ETC TEST(Option)" has been finished perfectly, go to "Verification Of Vehicle Repair " procedure.
