Components Location

WARNING: This page is about a different variant/trim than selected.

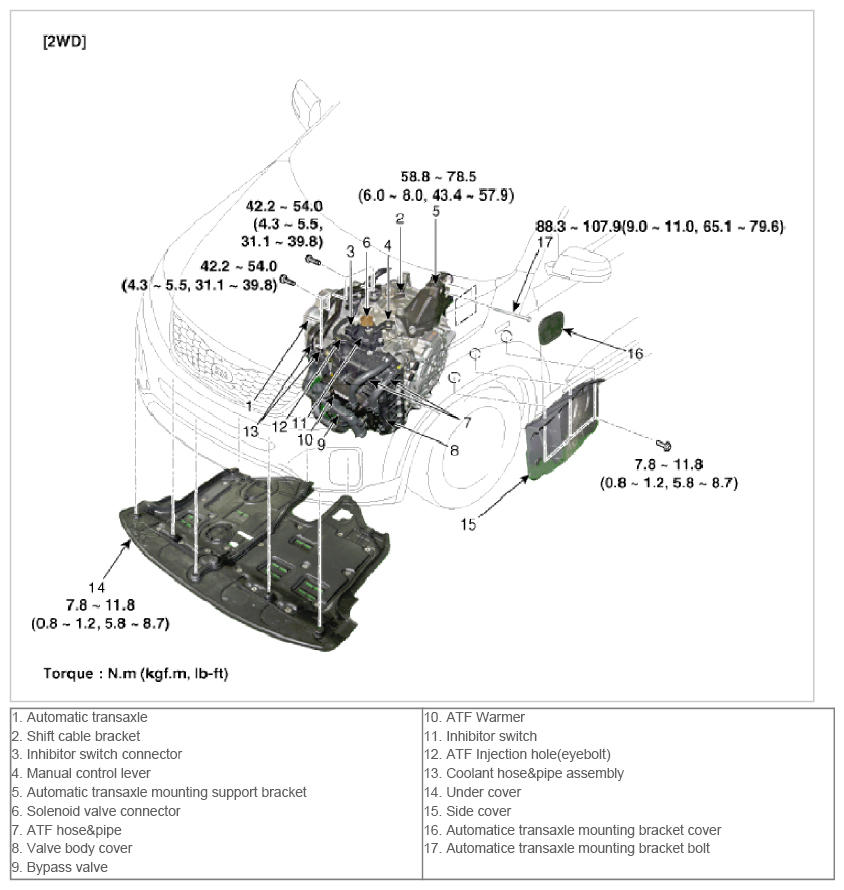

Fig 1: Automatic Transaxle Components Location With Torque Specifications (2 WD)
G09764528Courtesy of KIA MOTORS AMERICA, INC.
  1. Automatic transaxle
  2. Shift cable bracket
  3. Inhibitor switch connector
  4. Manual control lever
  5. Automatic transaxle mounting support bracket
  6. Solenoid valve connector
  7. ATF hose & pipe
  8. Valve body cover
  9. Bypass valve
  10. ATF Warmer
  11. Inhibitor witch
  12. ATR Injection hole (eyebolt)
  13. Coolant hose & pipe assembly
  14. Under cover
  15. Side cover
  16. Automatic transaxle mounting bracket cover
  17. Automatic transaxle mounting bracket bolt

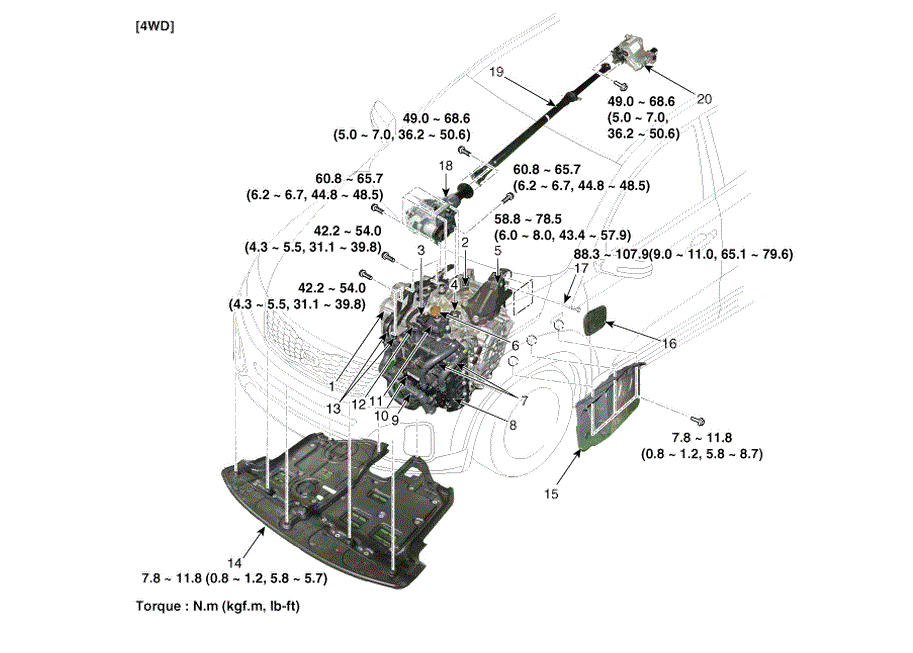

Fig 2: Automatic Transaxle Components Location With Torque Specifications (4WD)
G00569577Courtesy of KIA MOTORS AMERICA, INC.
  1. Automatic transaxle
  2. Shift cable bracket
  3. Inhibitor switch connector
  4. Manual control lever
  5. Automatic transaxle mounting support bracket
  6. Solenoid valve connector
  7. ATF hose & pipe
  8. Valve body cover
  9. Bypass valve
  10. ATF Warmer
  11. Inhibitor witch
  12. ATR Injection hole (eyebolt)
  13. Coolant hose & pipe assembly
  14. Under cover
  15. Side cover
  16. Automatic transaxle mounting bracket cover
  17. Automatic transaxle mounting bracket bolt
  18. Transfer assembly
  19. Propeller shaft
  20. Coupling Assembly
