Sorento EX, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Tailgate Module
>>
Power Tailgate Unit
>>
Schematic Diagram
>>
Block Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

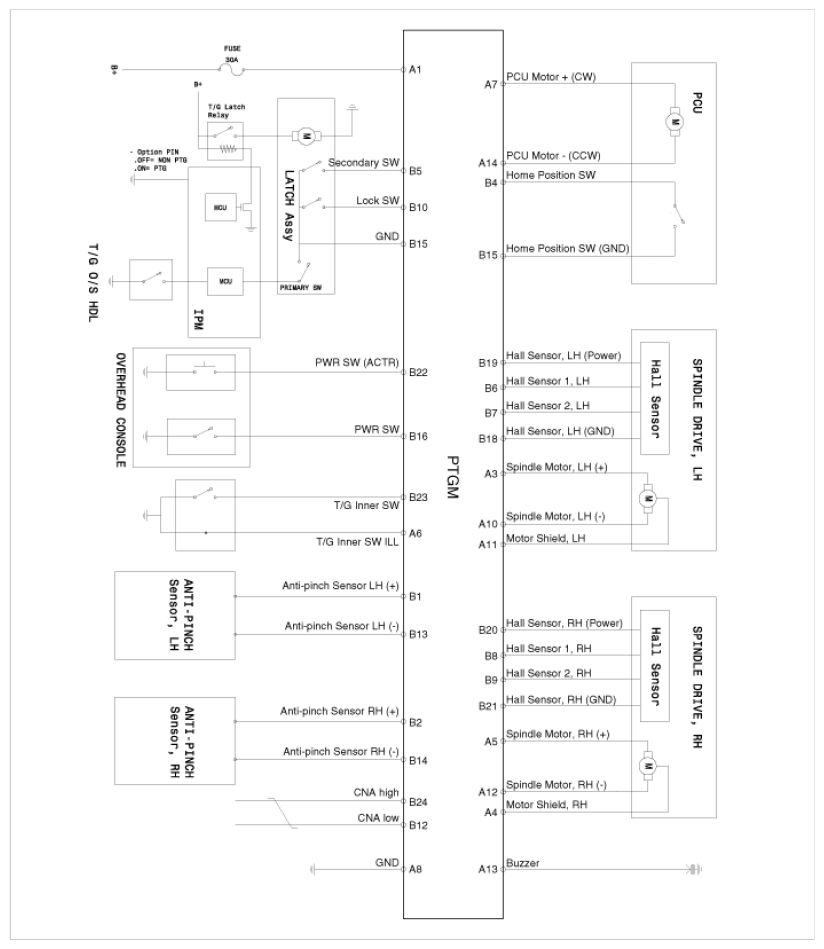

Block Diagram
Fig 1: Block Diagram Of Body Electrical System
Courtesy of KIA MOTORS AMERICA, INC.
