Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the positive (+) terminals (A) from the battery.
  3. Remove the battery insulation pad.
  4. Remove the battery mounting bracket (B) by loosening the mounting bolt and then remove the battery (C).
    Fig 1: Battery, Terminals And Mounting Bracket
    G09779094Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the ECM. (Refer to REMOVAL )
  6. Remove the battery tray (A) by loosening the bolts.

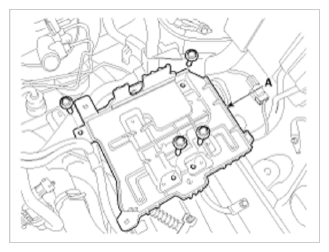

    Fig 2: Battery Tray
    G09779095Courtesy of KIA MOTORS AMERICA, INC.
