Repair Procedures: Inspection: Notes

Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and wiper switch.

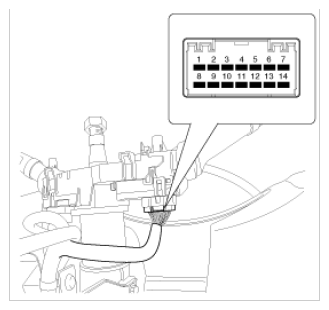

Fig 1: Windshield Wiper-Washer Switch Connector End View
G09778539Courtesy of KIA MOTORS AMERICA, INC.
