Repair Procedures: Adjustment

WARNING: This page is about a different car, the 2016 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. After loosening the hinge (A) mounting bolt, adjust the hood (B) clearance by moving it up and down, or left and right.
  2. Adjust the hood height by turning the hood overslam bumpers (C).
  3. After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up and down, or left and right.

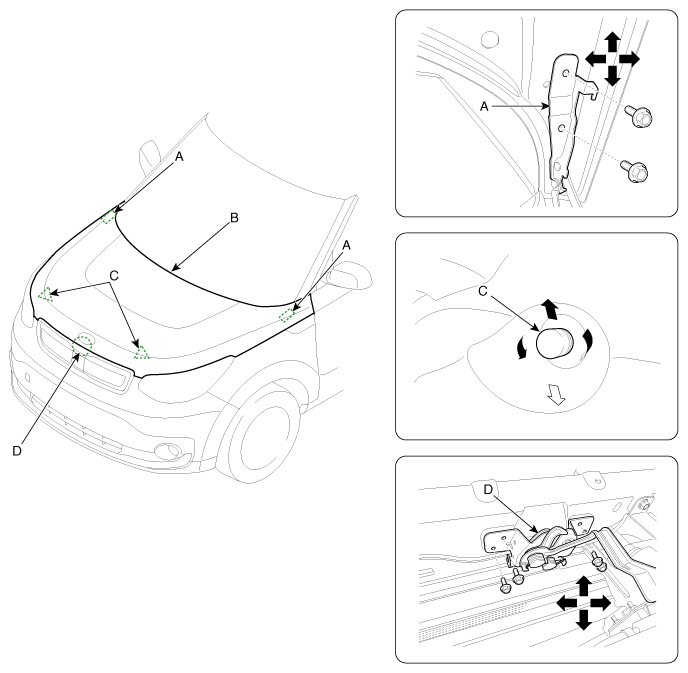

    Fig 1: Adjust Hood Height By Turning Hood Overslam Bumpers
    G11934202Courtesy of KIA MOTORS AMERICA, INC.
