Components And Components Location: Components
WARNING:
This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

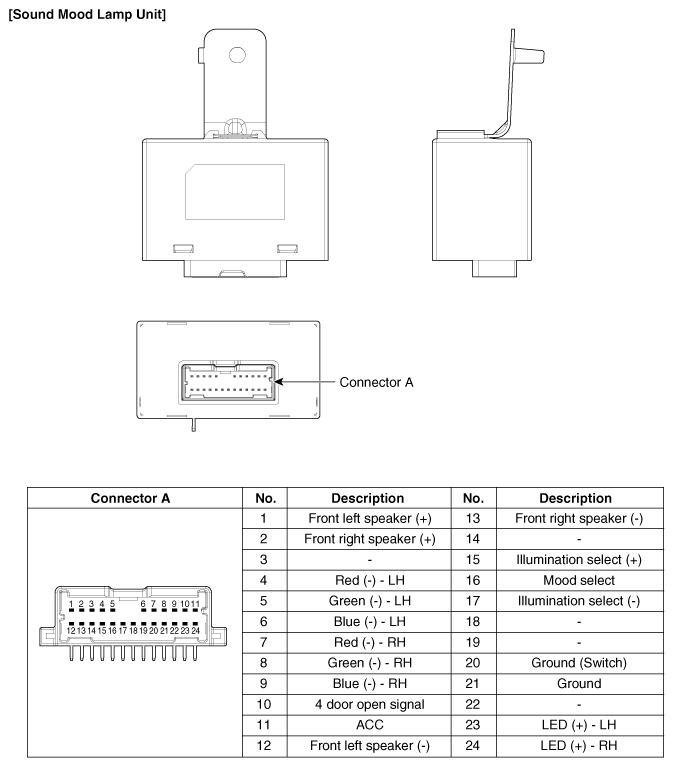

Fig 1: Sound Mood Lamp Unit
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Sound Mood Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.
