Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

[LHD]

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Remove the driver shower duct (A) after loosening the mounting screw.

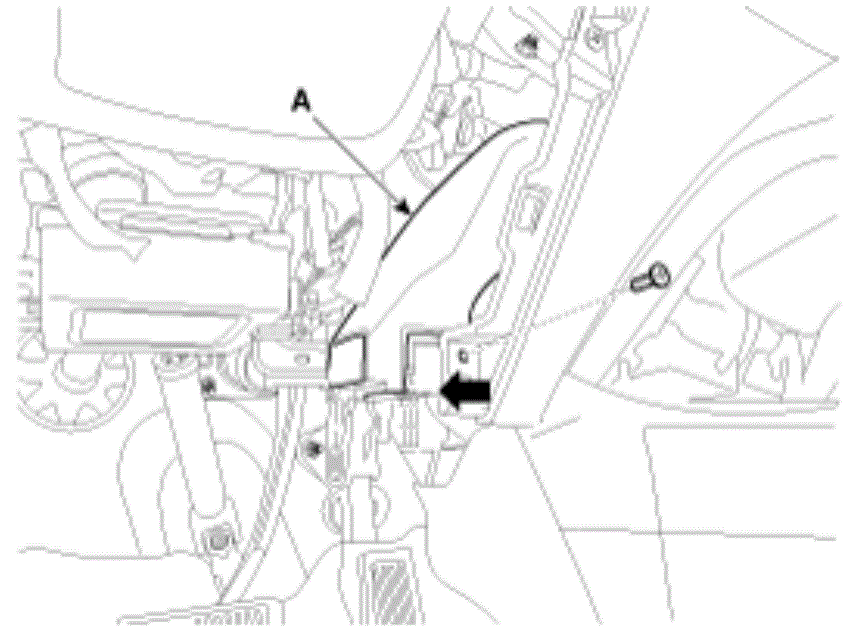

Fig 1: Remove Driver Shower Duct
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake pedal.
(Refer to Brake System - "BRAKE PEDAL REMOVAL ")
Disconnect the connector (A) and then remove the blower motor (B) after loosening the screws.
Install in the reverse order of removal.
[RHD]
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel.
  (Refer to Body - "CRASH PAD LOWER PANEL ")
3. Remove the driver"s side shower duct (A) after loosening the screw.

  Fig 2: Driver"s Side Shower Duct (A)
  Courtesy of KIA MOTORS AMERICA, INC.
4. Disconnect the connector (A) and then remove the blower motor (B) after loosening the screws.
5. Install in the reverse order of removal.
