Monitor DTC Status

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON"
  3. Monitor "Diagnostic Trouble Codes (DTC)"  with GDS.

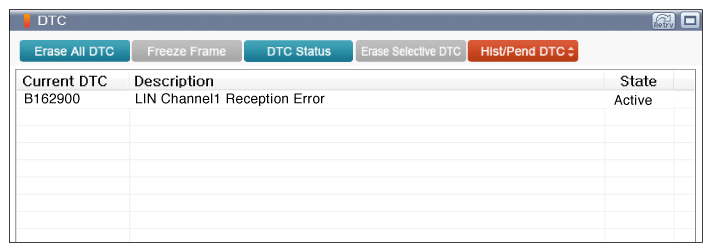

    Fig 1: Screen Display - DTC Description
    G11934855Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    NO
