Variant Coding
- Connect the GDS to the data link connector.
- Turn the ignition "ON".

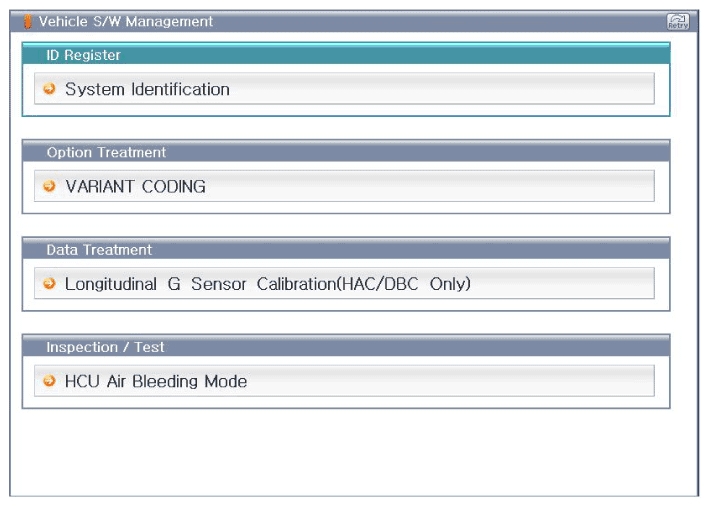

- Select vehicle name and system.

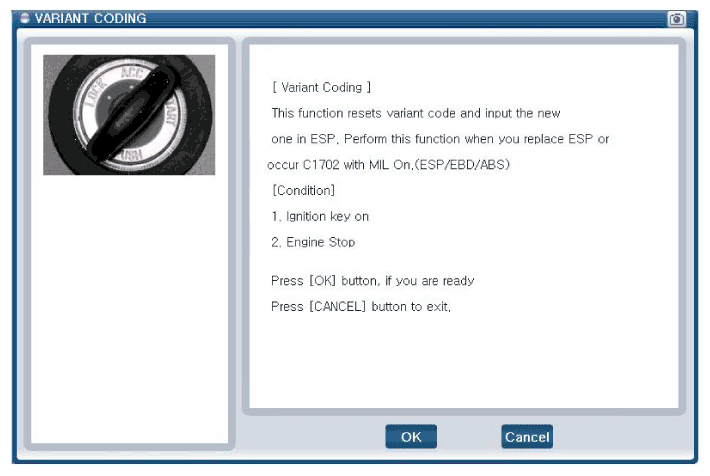

- Select the variant coding.
Courtesy of KIA MOTORS AMERICA, INC.

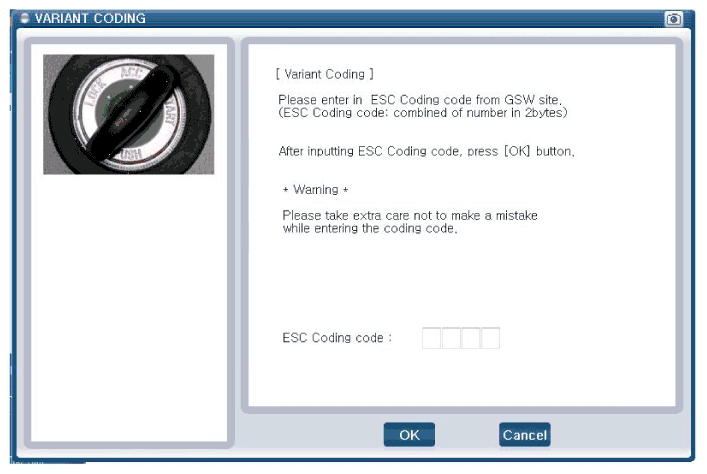

- Perform variant coding according to the instructions on the screen.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
- Ignition "OFF" and then ignition "ON".
- The variant coding is completed.
